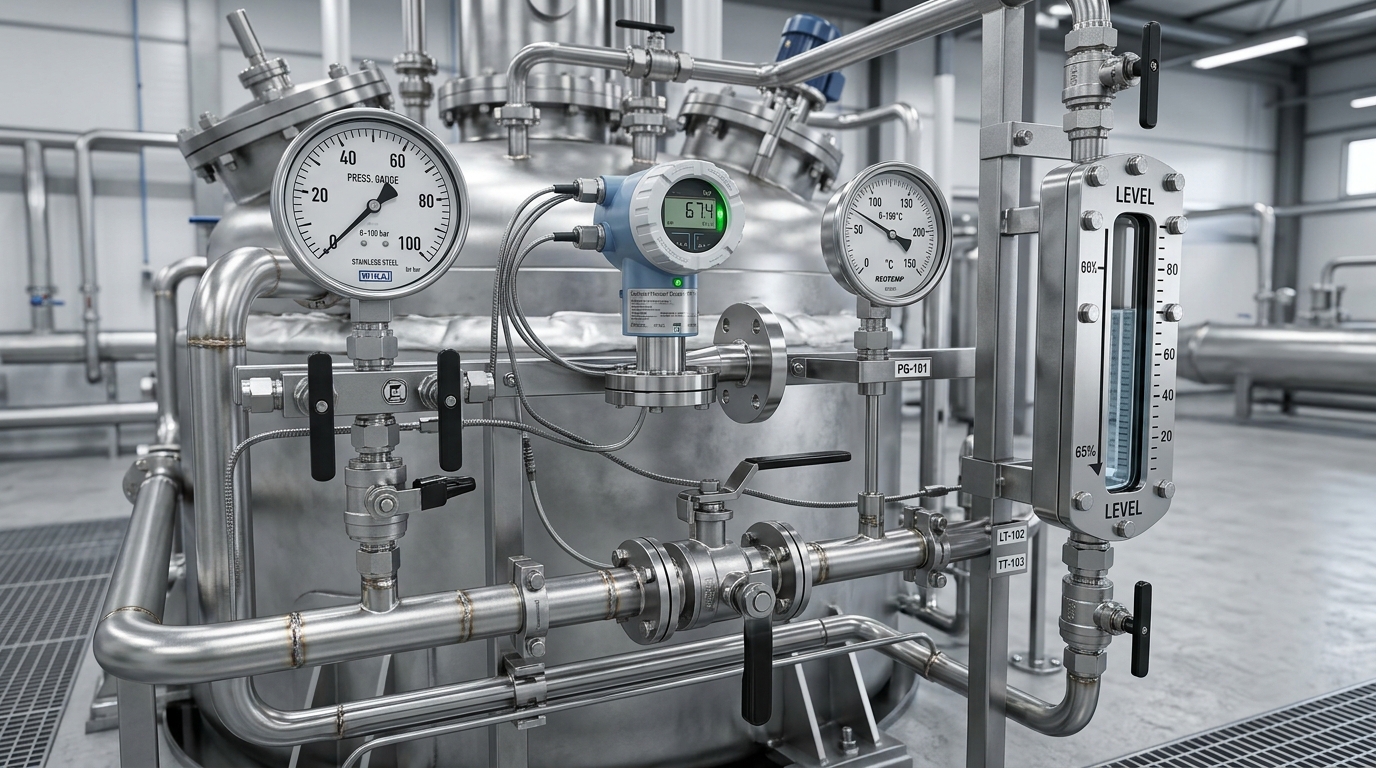

Precision measurement is the bedrock of plant safety and process efficiency. Operating without reliable instrumentation blinds operators to hazardous overpressure events, pump cavitation, and thermal runaway. Selecting industrial-grade Pressure Gauges, Temperature Gauges, and Level Gauges ensures real-time accuracy and zero unplanned outages.
1. Pressure Measurement: Standard Bourdon Tube vs. Chemical Diaphragm Seals
Selecting a pressure gauge requires matching the sensing element to the process fluid:
- Bourdon Tube Gauges: Ideal for clean liquids, compressed gases, and steam lines up to 1000 Bar. Available in dry or glycerine/silicone filled cases for pulsating pump discharge protection.
- Diaphragm Seal Pressure Gauges: When measuring corrosive acids, crystallizing chemicals, or viscous slurries, a flexible PTFE or Hastelloy diaphragm isolates the measuring instrument from the harsh media.
2. Temperature & Liquid Level Gauges
- Bimetallic & Gas Actuated Temperature Gauges: Robust mechanical temperature sensors with hermetically sealed dials, providing ±1% FSD accuracy across -50°C to +600°C ranges.
- Reflex & Transparent Level Gauges: High-pressure glass gauges for direct boiler and tank liquid level observation under extreme temperatures.
- Jacketed Sight Flow Indicators: Allow visual confirmation of fluid flow in jacketed pipelines (Explore Jacketed Sight Glass).
Installing a pressure snubber or siphon tube before the gauge protects internal gears from rapid pressure spikes (water hammer) and isolates sensitive Bourdon tubes from live superheated steam temperatures.
3. Complete Flow Loop Automation
Instrumentation feedback directly controls Automated Control Valves and alerts operators when Breather Vents or Flame Arresters require scheduled inspection.
