Special Valves

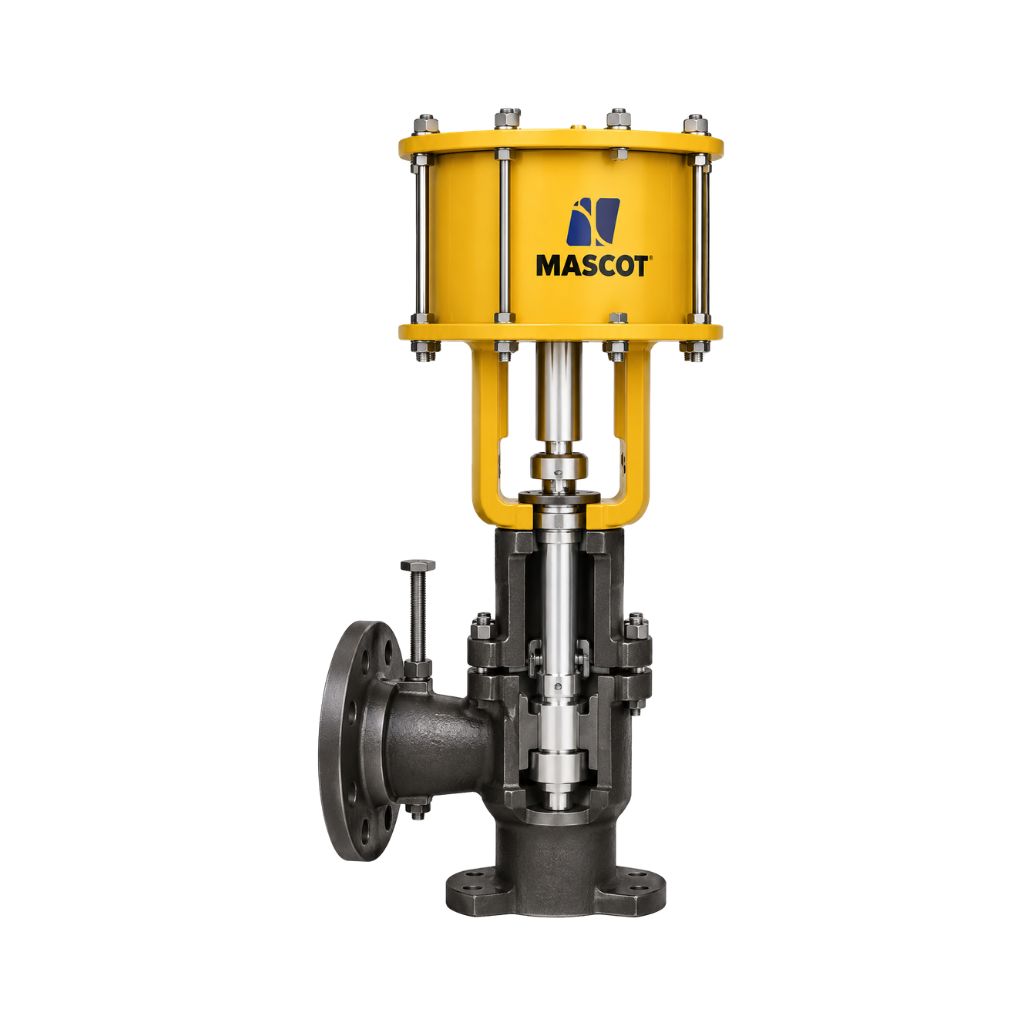

Steam Conditioning Valve
Custom-engineered specialty valves, including flush bottom, multi-port, and severe-service valves tailored for unique process conditions.
OVERVIEW
What Are Special Valves?
Special valves include reactor outlet flush bottom valves, sampling valves, and severe service isolation valves designed for high cycle counts, extreme slurry erosion, or complex piping configurations.
AUTHORIZED DEALER BRANDS
Key Features
- ✔️ Precise Steam Temperature Control
- ✔️ Efficient Steam & Water Mixing
- ✔️ Wide Pressure Rating up to 4500#
- ✔️ Standard Globe Valve Components
- ✔️ 60:1 High Turn-Down Ratio
Technical Specifications
| Parameter | Details |
|---|---|
| Valve Type | Steam Conditioning Valve |
| Available Sizes | 0.5″ to 36″ |
| Pressure Rating | ANSI Class 150# to 4500# |
| Spray Method | Small jets of spray through sleeve at the outlet where steam is highly turbulent for optimum mixing |
| Special Feature | Uses standard MASCOT Globe Control Valve components; no special trim required. Water is injected at the outlet to protect the valve body from pitting and thermal stresses. |
| Turn-Down Ratio | 60:1 |
| Applications | Steam Pressure & Temperature Reduction Stations, Power Plants, Refineries, Petrochemical, Process Industries |
