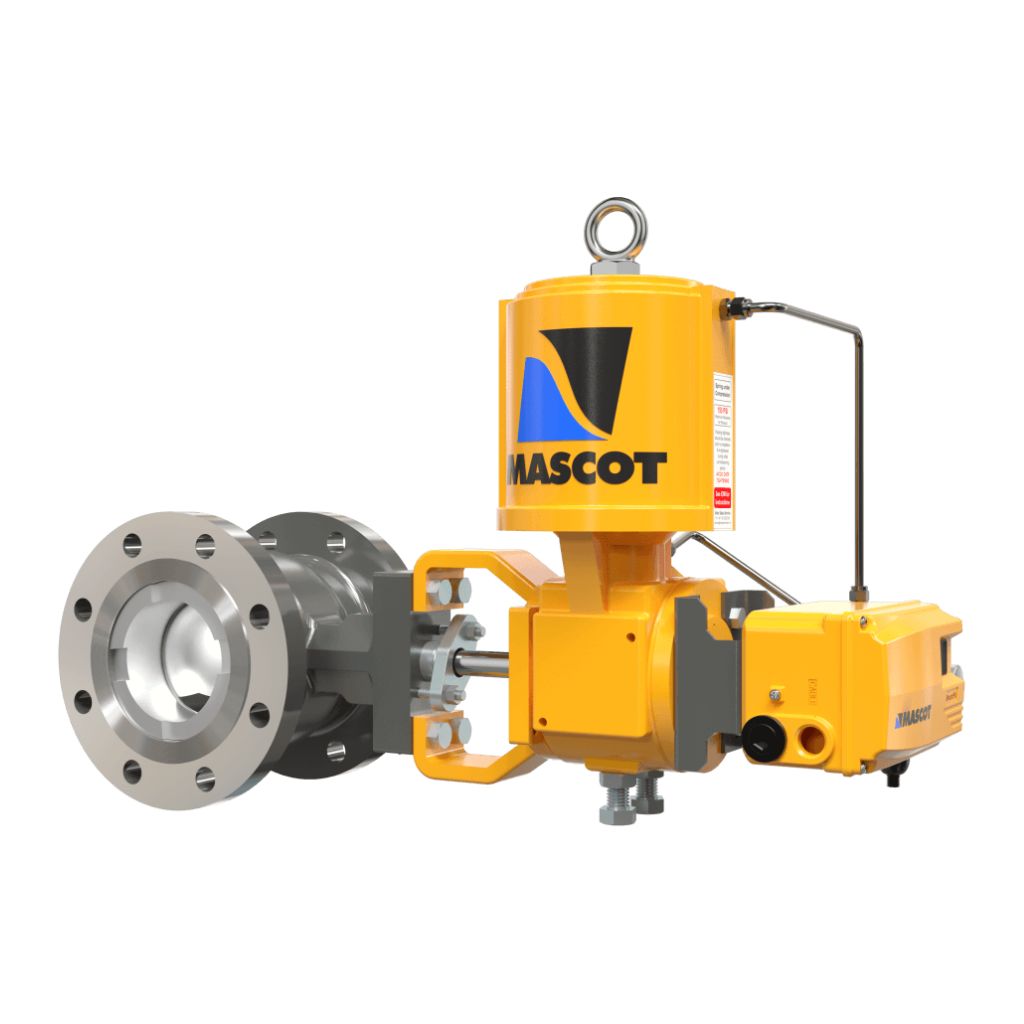

Segmented V-Notch Ball Shut-Off & Control Valve
Segmented V-Notch Ball Shut-Off & Control Valve
Segmented V-Notch Ball Shut-Off & Control Valves are designed for precise flow regulation and reliable shut-off in demanding industrial process applications. The V-shaped notch in the segmented ball provides excellent throttling characteristics, high controllability, and efficient handling of fluids containing suspended solids, fibers, or other challenging media.
Chemoil supplies Segmented V-Notch Ball Shut-Off & Control Valves sourced from trusted manufacturing partners and selected according to specific process requirements. With robust construction, high rangeability, and multiple seat and material options, these valves are suitable for chemical, petrochemical, oil & gas, power, pulp & paper, mining, and general process industries.
AUTHORIZED DEALER BRANDS
×
![]()
Key Features
- ✔️ Precision V-Notch segmented ball design
- ✔️ Excellent flow control and throttling performance
- ✔️ High rangeability for accurate process control
- ✔️ Reliable shut-off capability
- ✔️ Suitable for media containing suspended solids
- ✔️ High resistance to erosion and abrasion
- ✔️ Self-relieving and efficient flow characteristics
- ✔️ Multiple seat and trim options
- ✔️ Pneumatic and electric actuation available
- ✔️ Suitable for severe industrial process applications
Technical Specifications
| Parameter | Details |
|---|---|
| Valve Type | Segmented V-Notch Ball, Single Piece |
| Material of Construction (MOC) | WCB, CF8, CF3, CF8M, CF3M, 4A, 5A, 6A, Monel |
| Size Range | 1" to 24" (DN 25 to 600) |
| Construction | Standard, Extended for High Temperature, Cryogenic for Low Temperature |
| Pressure Rating | ASME Class 150# to 900# | Special On Request |
| End Connection | Flanged End | Wafer Short Pattern |
| Jackated Option | Available |
| Shutoff Class | FCI 70-2 Class IV, VI |
| Flow Characteristic | Linear, Equal Percentage by Positioner |
| Operation | Pneumatic |
| Brand | Mascot |
