Jacketed Valves

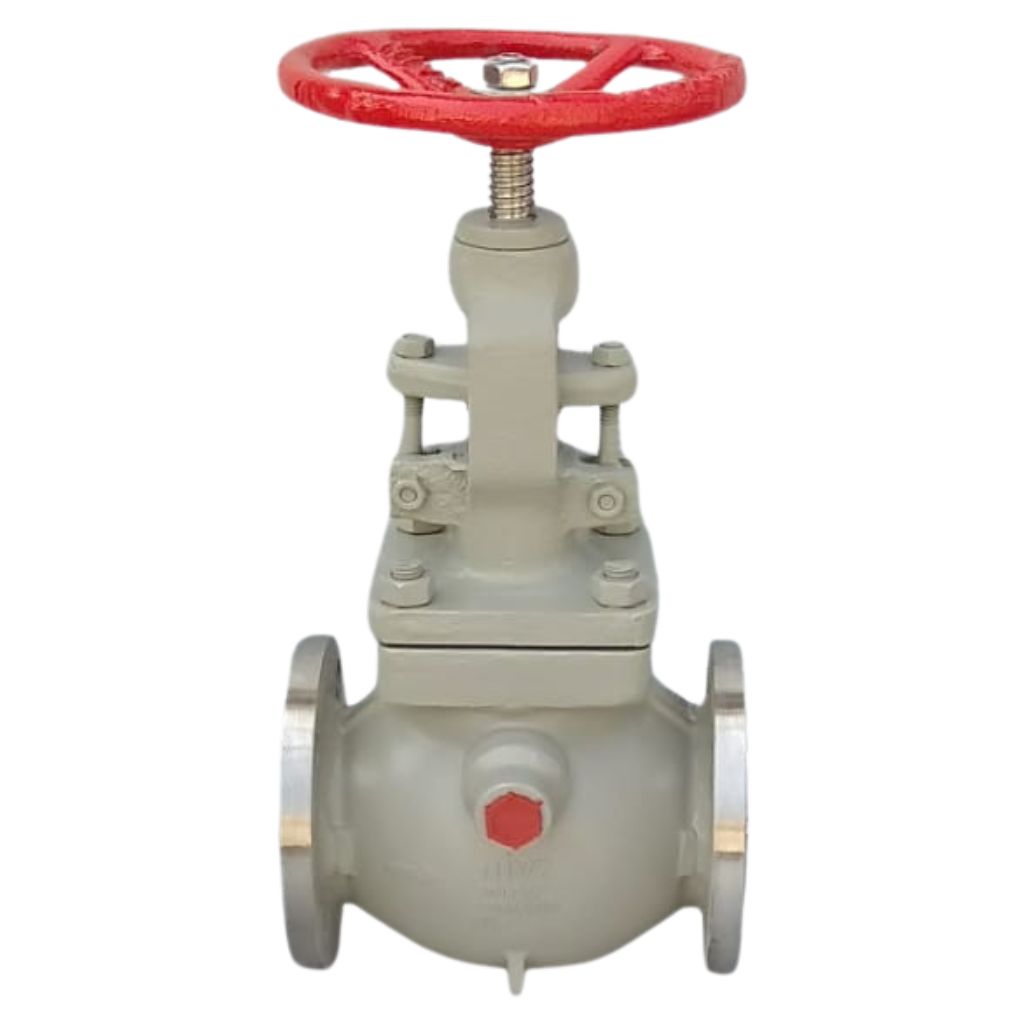

Jacketed Globe Valve
Full and partial jacketed valves designed to circulate steam, hot water, or thermal oil to maintain media fluidity in viscous services.
OVERVIEW

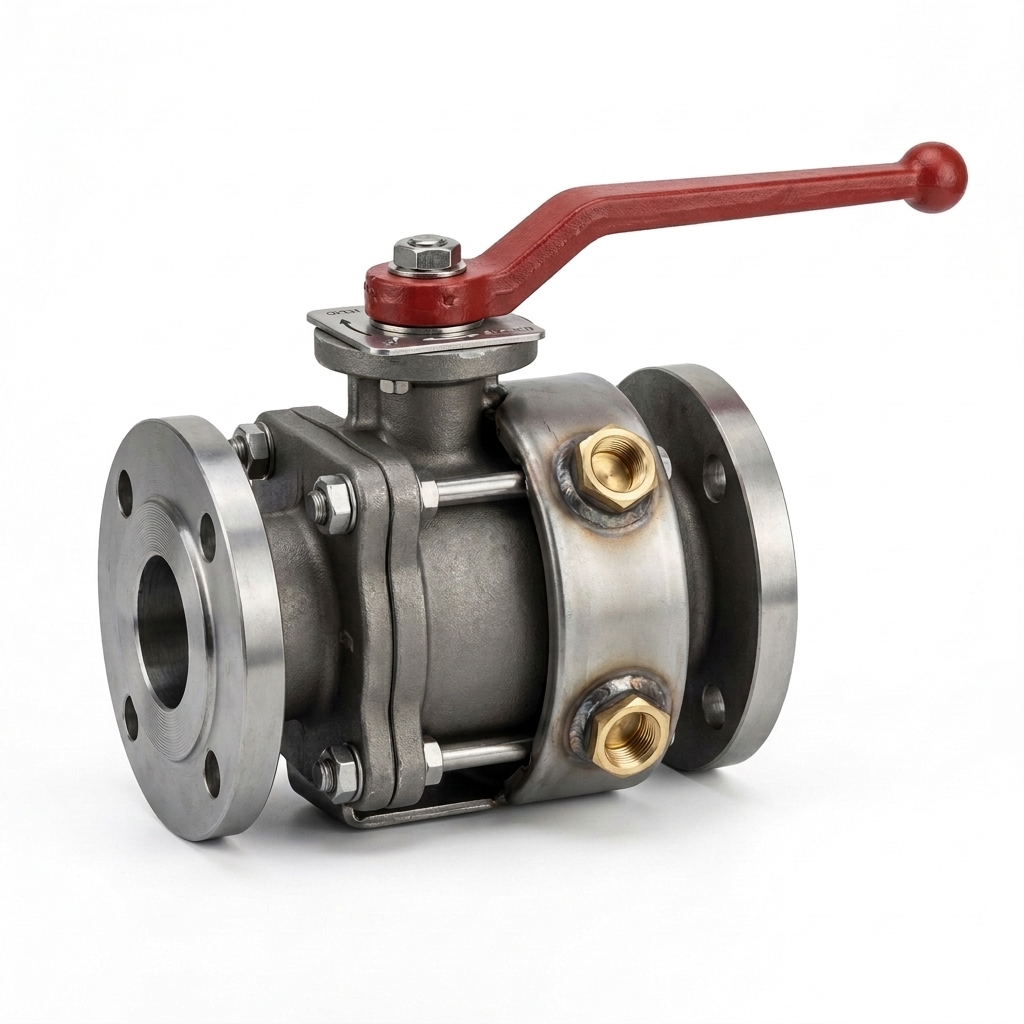

What Are Jacketed Valves?
Jacketed valves feature an integrated outer chamber welded to the valve body. Circulating heating media prevents materials like sulfur, bitumen, asphalt, and resins from crystallizing or solidifying.
Key Features
- ✔️ Oversized Connection Flanges
- ✔️ Full Thermal body Coverage
- ✔️ Solid Weld-fabricated Jackets
- ✔️ Prevents Media Solidification
- ✔️ High Heat Transfer Efficiency
- ✔️ Minimized Thermal Dead Zones
- ✔️ Standard Jacket Ports
- ✔️ Available on All Valve Types
Brand Partner
Technical Specifications
| Parameter | Details |
|---|---|
| Size Range | 1/2" – 16" (Flanges 1 size oversized, e.g. 2" Port with 3" Flange) |
| Pressure Class | 150# – 600# |
| Body Materials | Carbon Steel (WCB), CF8 (304), CF8M (316) |
| Jacket Materials | Carbon Steel, SS 304, SS 316 |
| Jacket Connections | NPT Threaded, Flanged |
| Jacket Pressure | Up to 150 psi standard |
| End Connections | Flanged (oversized) |
| Operation | Lever, Wrench, Gear, Actuator |
| Design Standards | ASME B16.34, API 6D, API 608 |
| Face to Face | Manufacturer Standard (Oversized) |
| Testing Standards | API 598, Jacket Shell Test |
