Strainer & Sight Glass

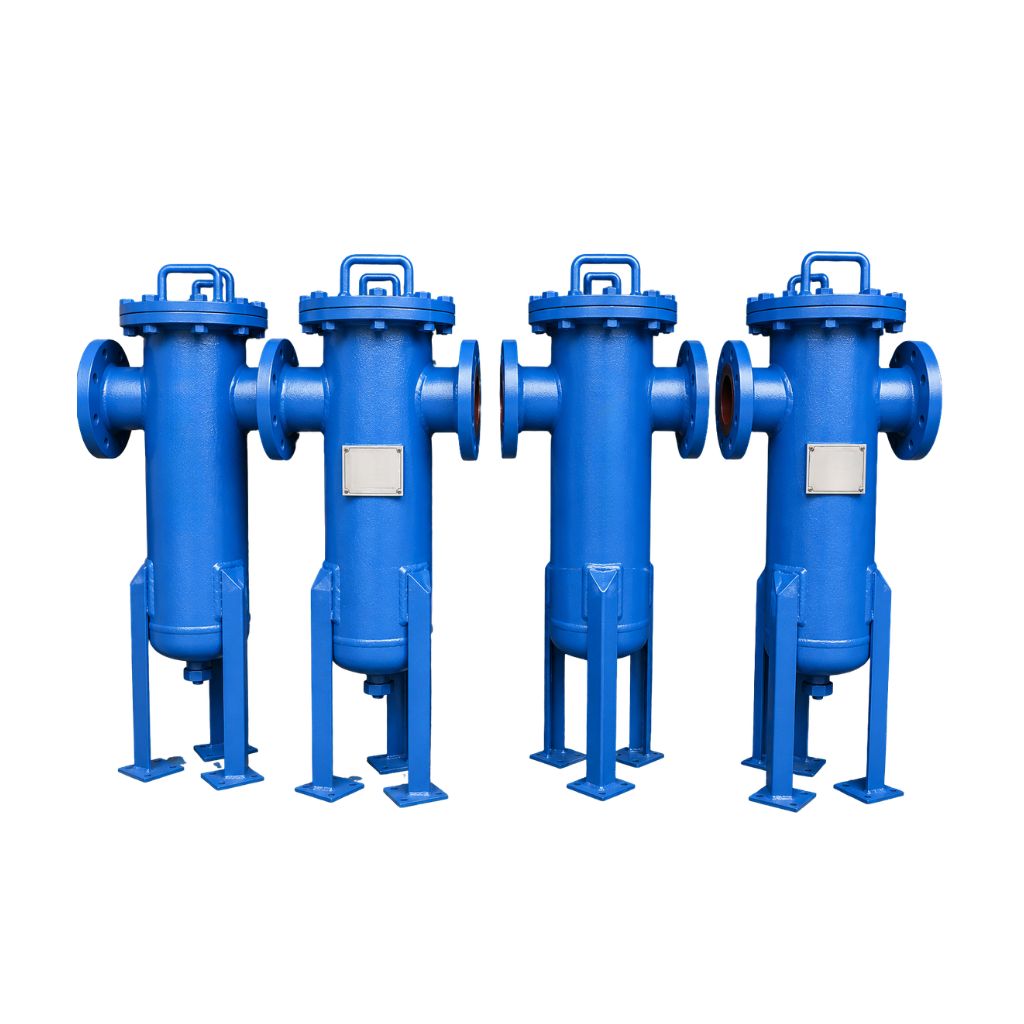

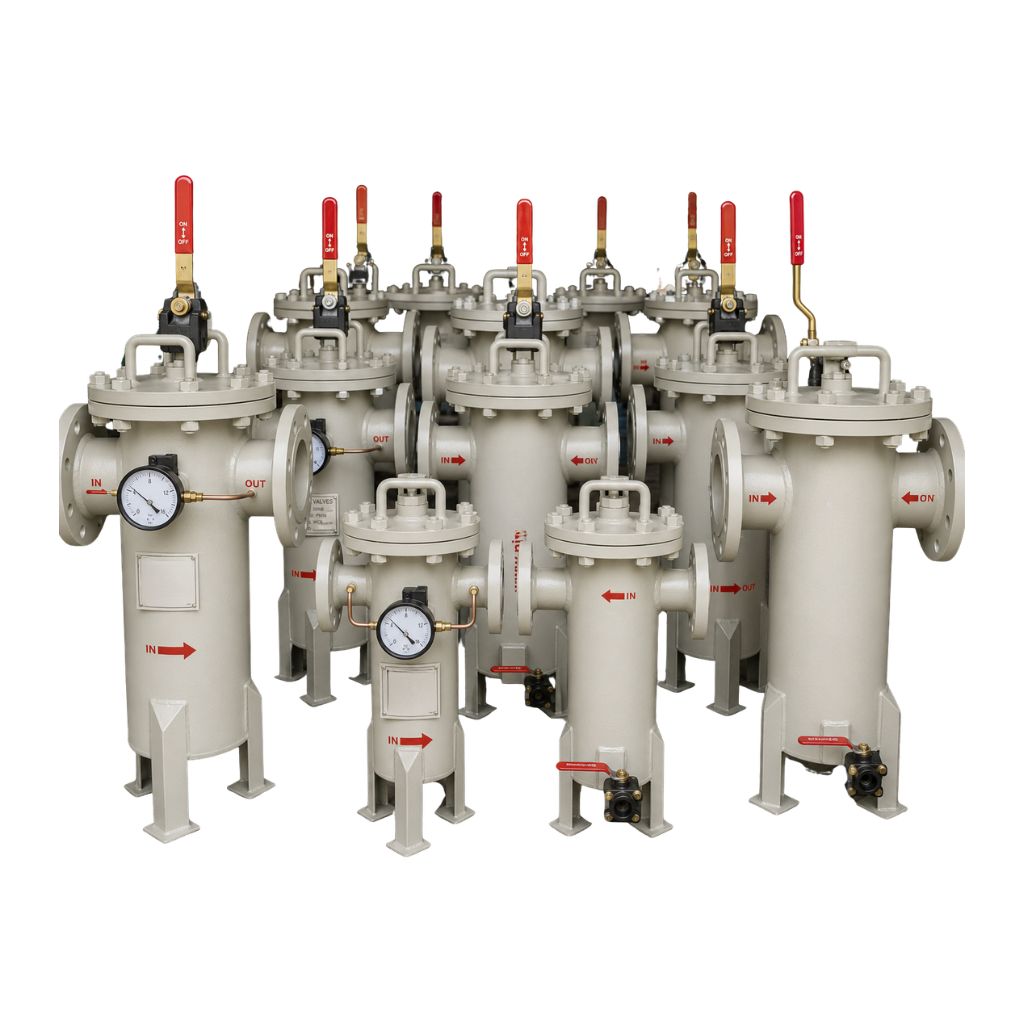

Basket Type Strainer
Basket Type Strainer
Chemoil offers premium Basket Type Strainers designed to efficiently remove solid particles and debris from liquid process lines, protecting pumps, valves, meters, and other critical equipment. Featuring a large filtration area and low-pressure drop, these strainers provide reliable performance in chemical, petrochemical, oil & gas, power, water treatment, and industrial process applications.
AUTHORIZED DEALER BRANDS
×
![]()
Key Features
- ✔️ High-capacity basket for efficient debris filtration
- ✔️ Low-pressure drop with excellent flow performance
- ✔️ Easy basket removal for quick cleaning and maintenance
- ✔️ Heavy-duty, corrosion-resistant construction
- ✔️ Suitable for a wide range of industrial process fluids
Technical Specifications
| Parameter | Specification |
|---|---|
| Size Range | DN25 to DN600 (1`` to 24``) |
| Pressure Rating | ANSI Class 150 / 300 / 600, PN16 to PN100 |
| Body Material | Cast Steel, Carbon Steel, Stainless Steel (SS304/SS316/SS316L) |
| End Connection | Flanged, Butt Weld |
| Design Standard | ASME B16.34, ASME B16.5, API 594 |
| Temperature Range | -29°C to +425°C (Depending on Material & Service Conditions) |
Other Related Products
Need Help Selecting the Right Basket Type Strainer?
Our experts are ready to help you choose the best solution for your application.
