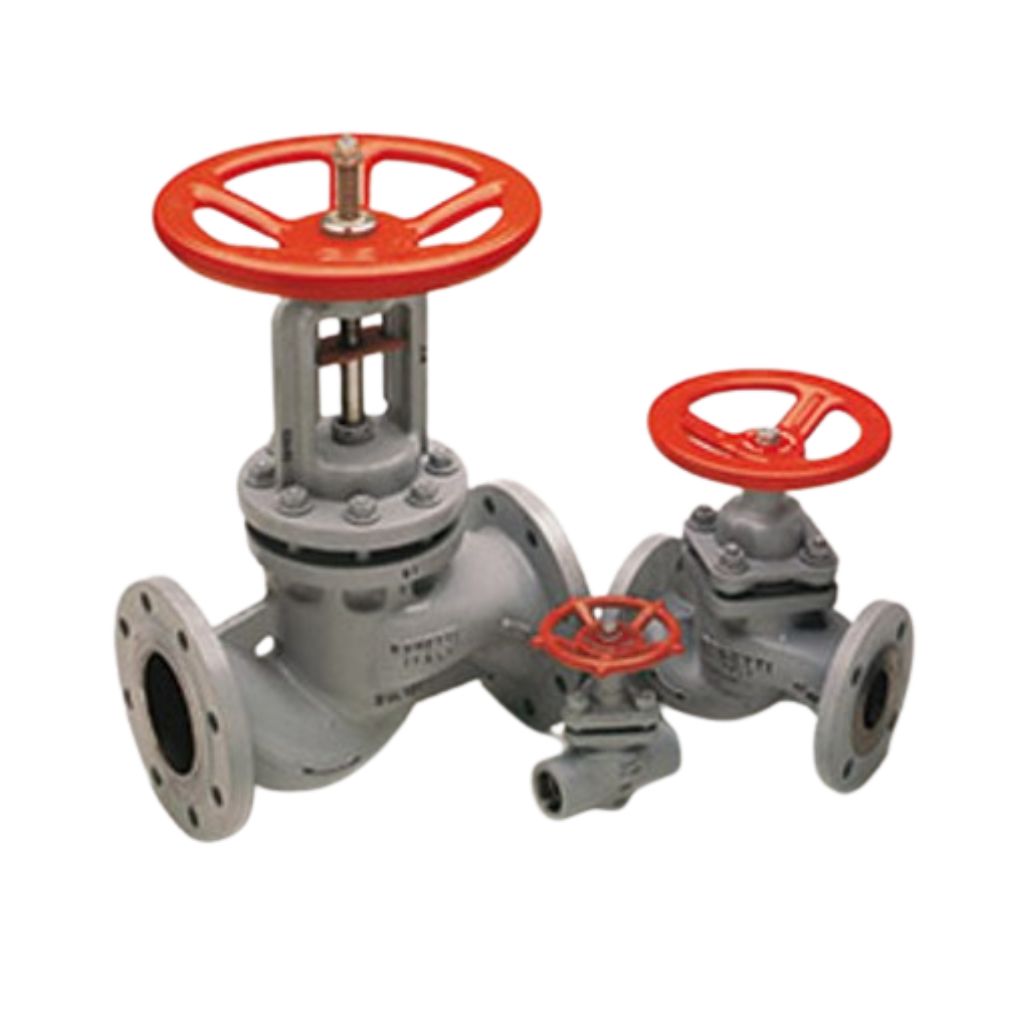

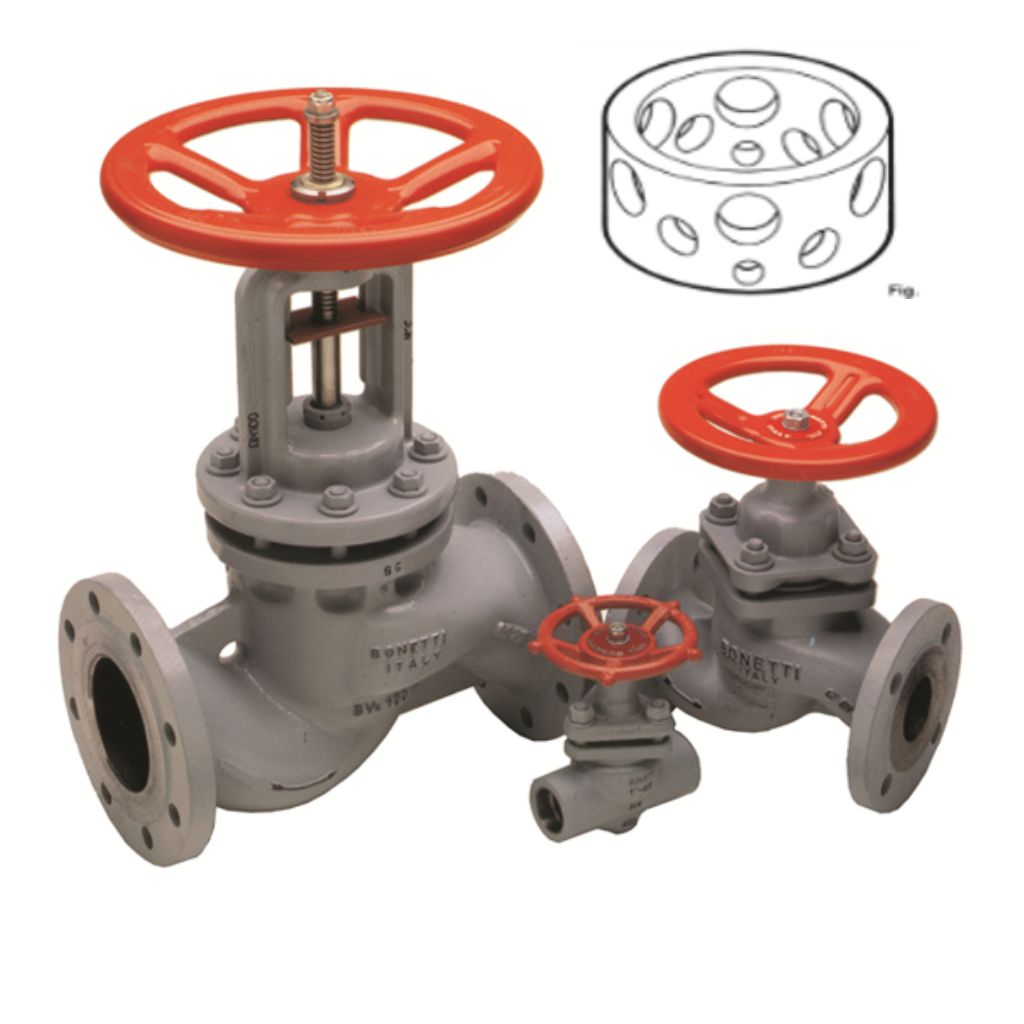

Piston Valves
The Piston Valve is a high-performance linear motion valve designed to provide reliable shut-off and precise flow control in steam, condensate, thermal oil, gas, and industrial process systems. Its precision-engineered piston and sealing ring design ensure bubble-tight sealing, low operating torque, and long service life, making it an ideal alternative to conventional globe valves.
Piston Valves
Manufactured using premium-quality materials and advanced engineering techniques, the Piston Valve offers exceptional resistance to high pressure, high temperature, corrosion, and wear. It is widely used in power plants, chemical processing, petrochemical, pharmaceutical, food processing, textile, and HVAC industries where reliable flow control and minimal maintenance are essential.
Key Features
- ✔️ Precision Engineered Piston Sealing Design
- ✔️ Bubble Tight Shut-Off Performance
- ✔️ High Pressure & High Temperature Capability
- ✔️ Replaceable Sealing Rings for Easy Maintenance
- ✔️ Blow-Out Proof Stem for Enhanced Safety
- ✔️ Low Operating Torque with Smooth Operation
- ✔️ Excellent Resistance to Steam, Thermal Oil & Process Fluids
- ✔️ Corrosion Resistant Construction for Long Service Life

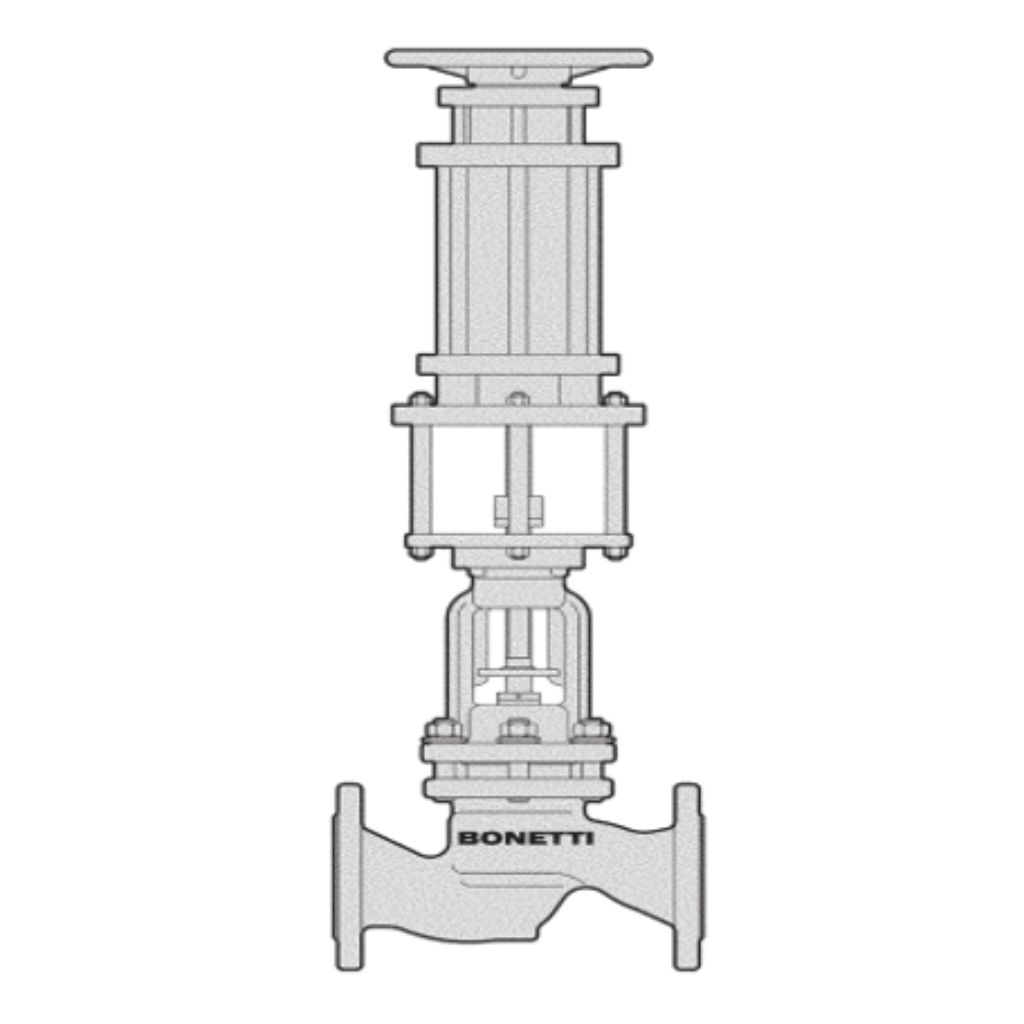

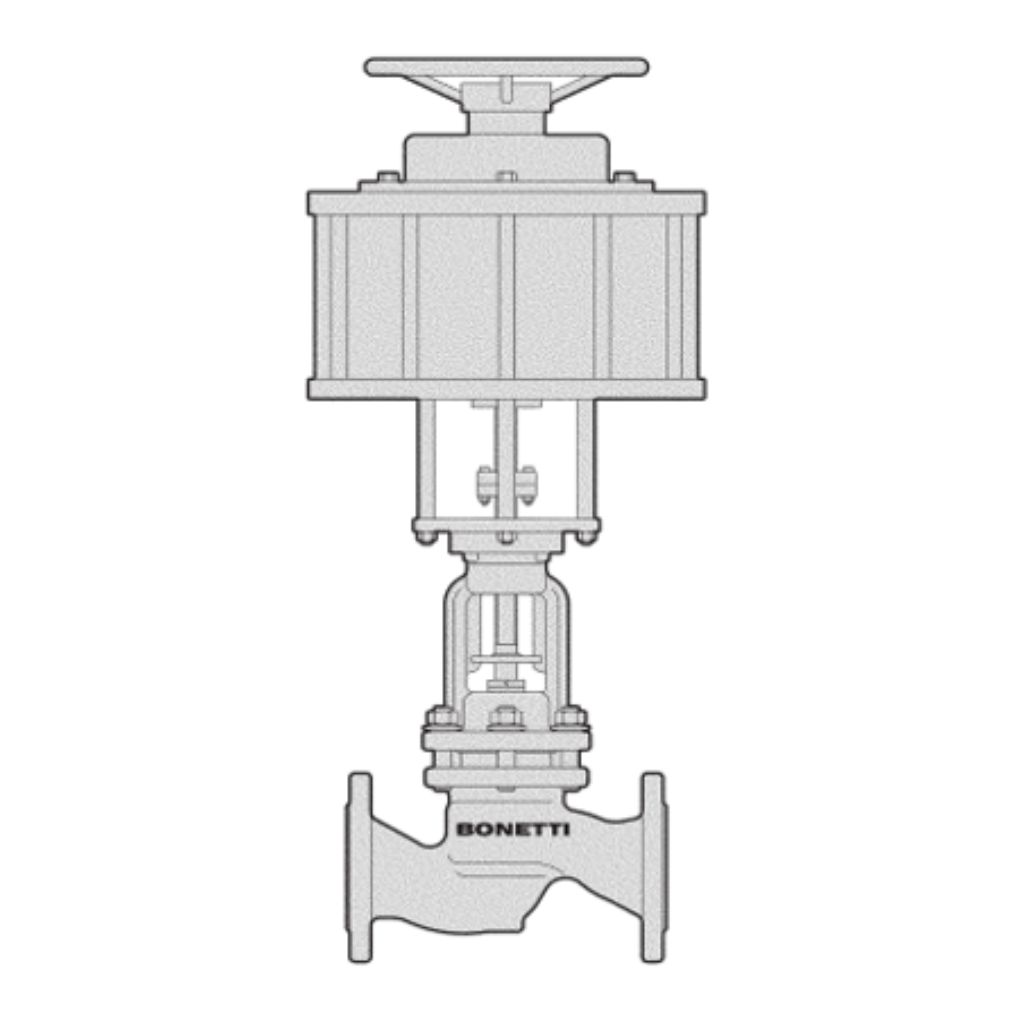

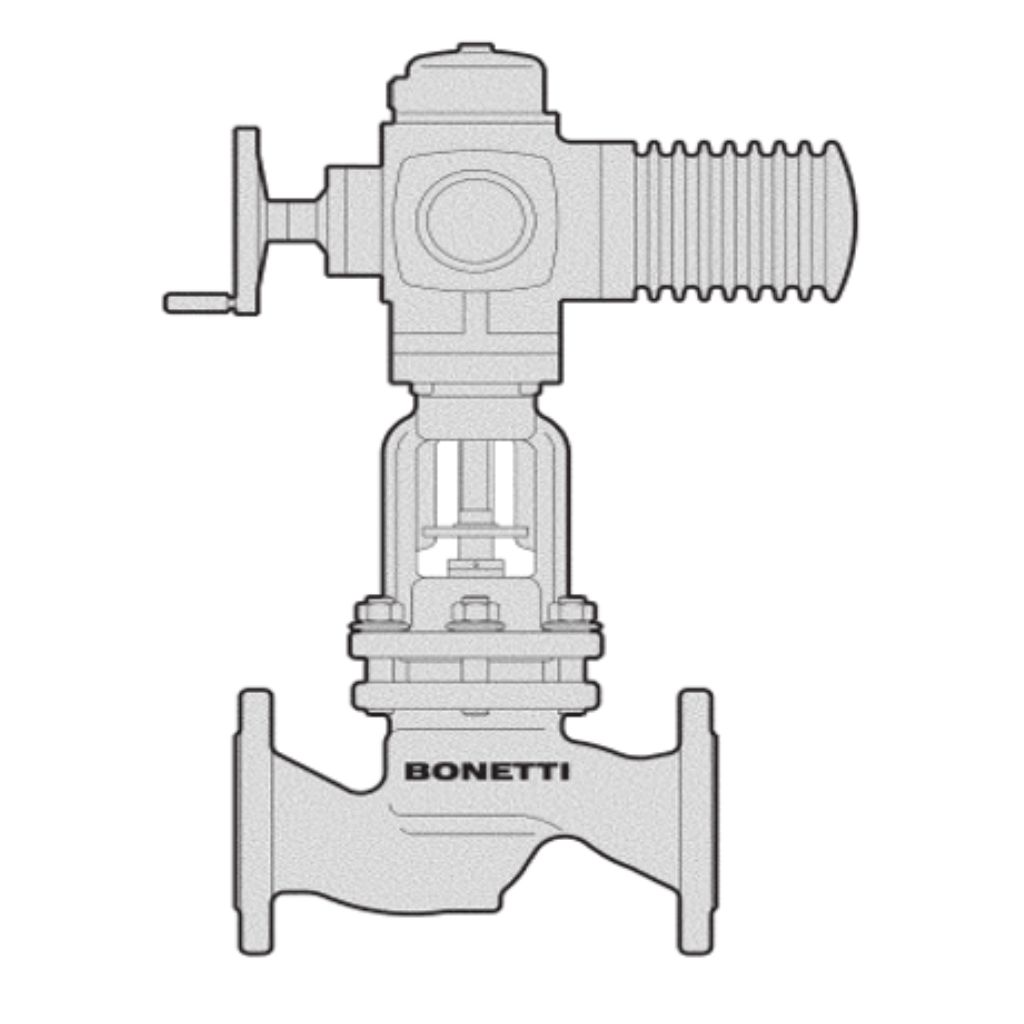

- ✔️ Available with Manual, Pneumatic & Electric Actuation
- ✔️ Manufactured to International API & ASME Standards
Technical Specifications
| Parameter | Details |
|---|---|
| Sizes | 3/8`` to 8`` |
| Pressure Rating | ASME Class 150# | 300# | 800# | PN 16 | PN 40 | PN 63 |
| Connection | Flanged | Screwed | Socket Weld | Butt Weld |
| Design & Qualification | API 6FA (Fire Safe) | BS 6755 (Fire Safe) | TA Luft | TÜV Mannheim | PED 97/23/EC | ATEX Directive 94/9/EC |
| Temperature | -40 °C to +550 °C |
| Material | Forged Steel | Cast Steel | Stainless Steel |
