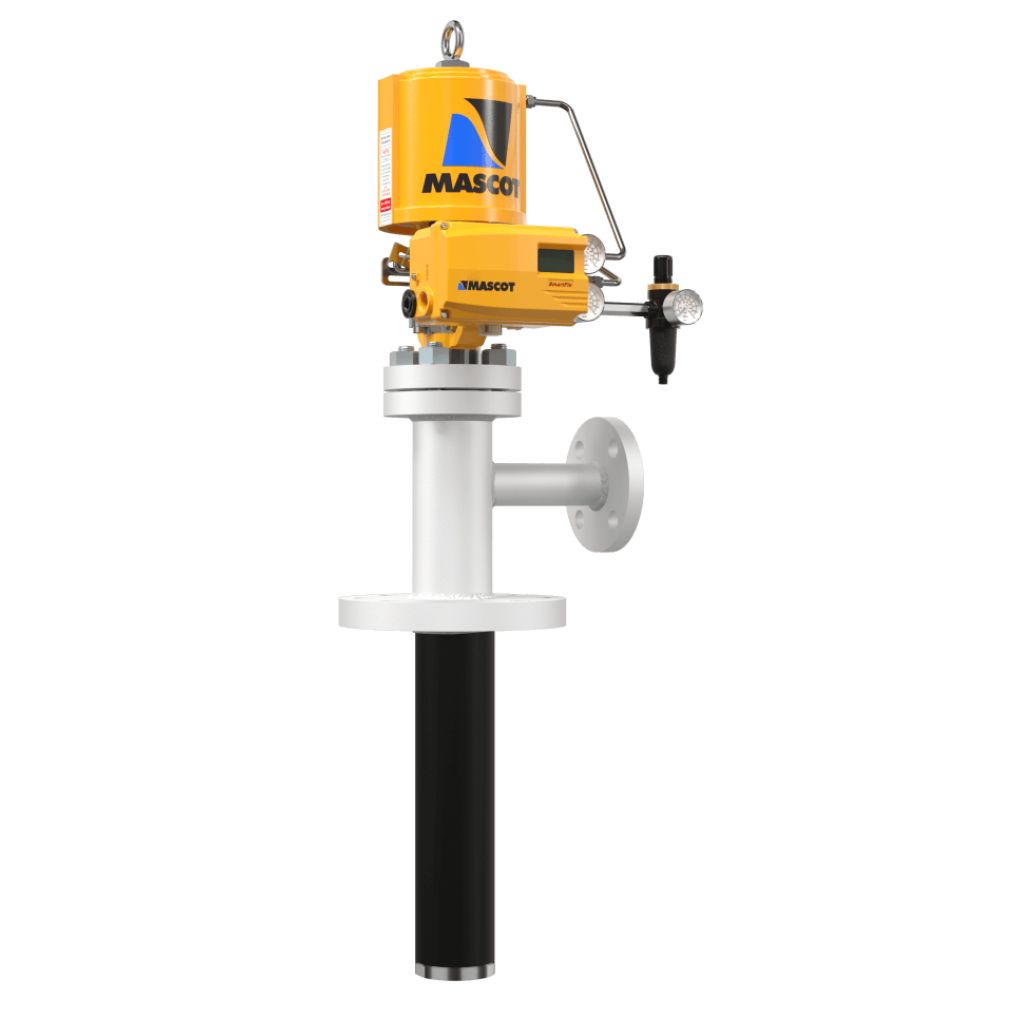

Variable Spray Desuperheater

Chemoil Advance Technology supplies Variable Spray Desuperheaters from recognized manufacturers for controlled reduction of superheated steam temperature in power generation and industrial steam systems. These desuperheaters use controlled water injection into the steam flow to reduce steam temperature toward the required downstream operating condition.

The variable spray design allows the cooling-water injection to be adjusted according to changing steam-flow and operating conditions. This provides a flexible solution for applications where the required steam temperature varies with load, flow demand or process conditions.

Variable Spray Desuperheater

Key Features

  • ✔️ Variable spray nozzle for precise temperature control
  • ✔️ Efficient water atomization for rapid desuperheating
  • ✔️ Suitable for fluctuating steam flow conditions
  • ✔️ Rugged design for high-pressure and high-temperature service
  • ✔️ Low maintenance with long operational life

Technical Specifications

Parameter Specification
Size Range DN50 to DN300 (2`` to 12``)
Pressure Rating ANSI Class 150 / 300 / 600 / 900 / 1500
Body Material Stainless Steel, Carbon Steel, Chrome Moly Steel, Alloy Steel
End Connection Flanged, Butt Weld
Design Standard ASME B16.34, IEC 60534
Temperature Range Up to +600°C (Depending on Material & Service Conditions)

Need Help Selecting the Right Variable Spray Desuperheater?

Our experts are ready to help you choose the best solution for your application.
