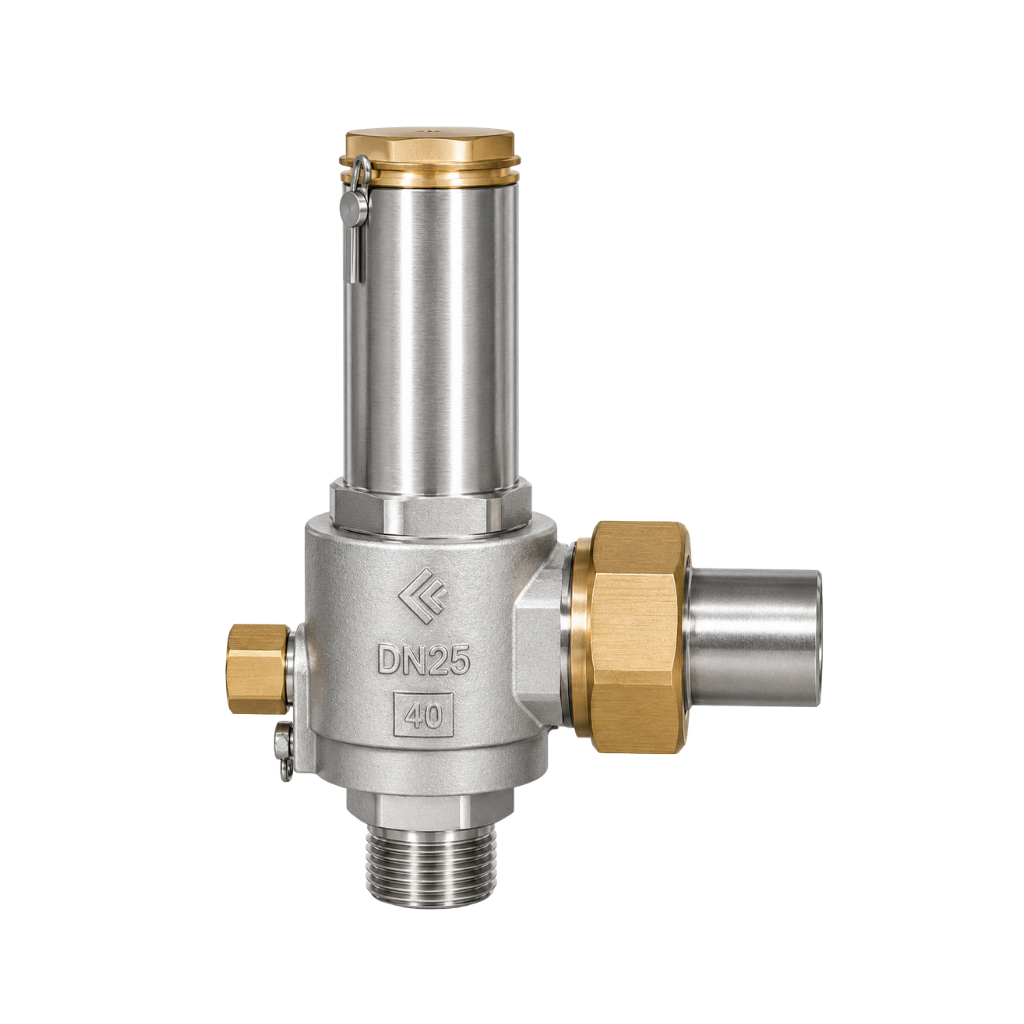

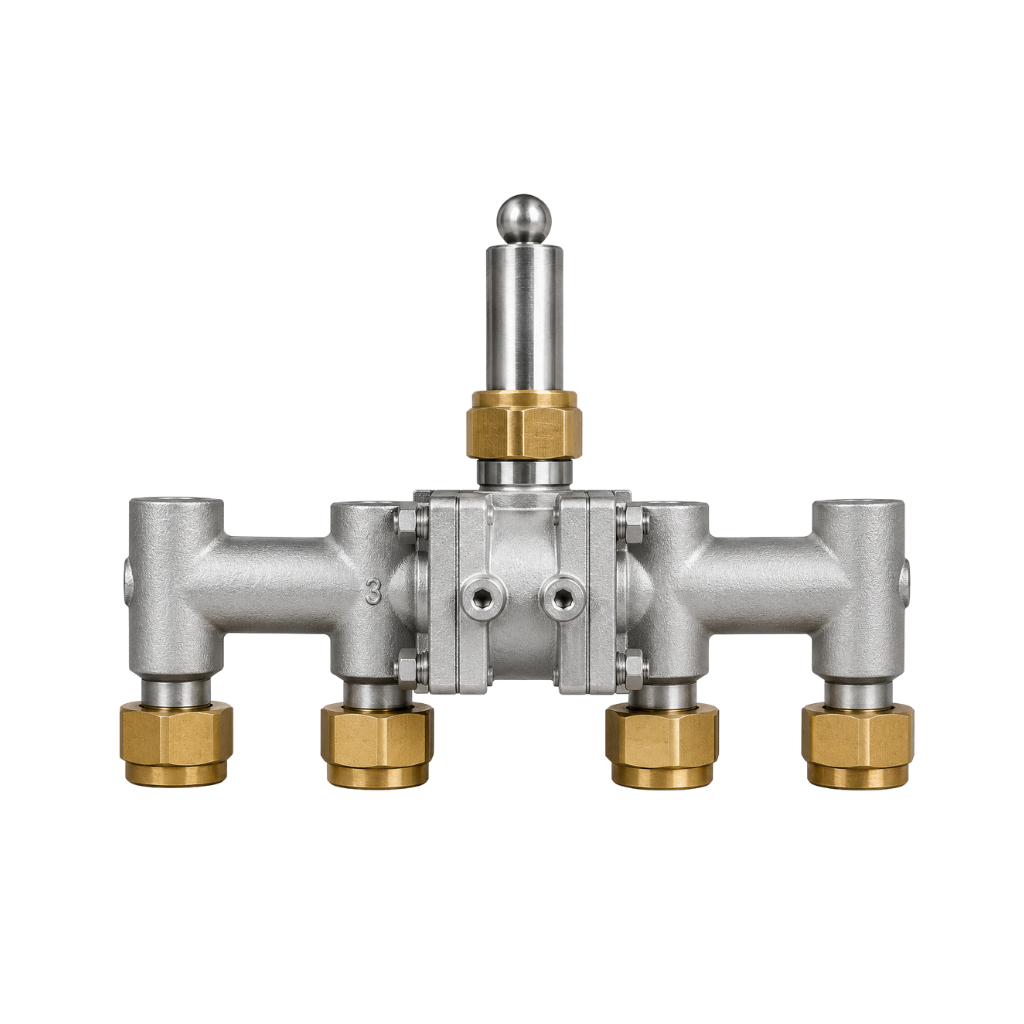

Cryogenic Tank Valve
Cryogenic Tank Valve
Chemoil Advance Technology supplies Cryogenic Tank Valves from recognized manufacturers for reliable isolation and fluid handling in cryogenic storage tanks, vessels and low-temperature process systems. These valves are designed and selected for applications where extremely low operating temperatures require suitable materials, sealing arrangements and valve construction.
Cryogenic tank valves provide controlled isolation of process media from storage or process vessels. Depending on the valve design, they can be used for tank filling, discharge, isolation or other fluid-handling duties. The specific configuration should be selected according to the stored medium, operating temperature, pressure, flow requirements and vessel connection.
Key Features
- ✔️ Extended bonnet design for reliable cryogenic operation
- ✔️ Leak-tight sealing for safe storage and transfer of cryogenic fluids
- ✔️ Suitable for LNG, LPG, LOX, LIN, LAR, and liquid hydrogen applications
- ✔️ Excellent thermal insulation with low operating torque
- ✔️ Manufactured to international cryogenic and safety standards
Technical Specifications
| Parameter | Specification |
|---|---|
| Size Range | DN15 to DN300 (½`` to 12``) |
| Pressure Rating | ANSI Class 150 / 300 / 600, PN16 to PN100 |
| Body Material | Stainless Steel (CF8, CF8M, CF3M), Low Temperature Carbon Steel (LTCS) |
| End Connection | Flanged, Butt Weld, Socket Weld |
| Design Standard | BS 6364, ASME B16.34, API 6D |
| Temperature Range | -196°C to +80°C (Depending on Material & Design) |
Need Help Selecting the Right Cryogenic Tank Valve?
Our experts are ready to help you choose the best solution for your application.
