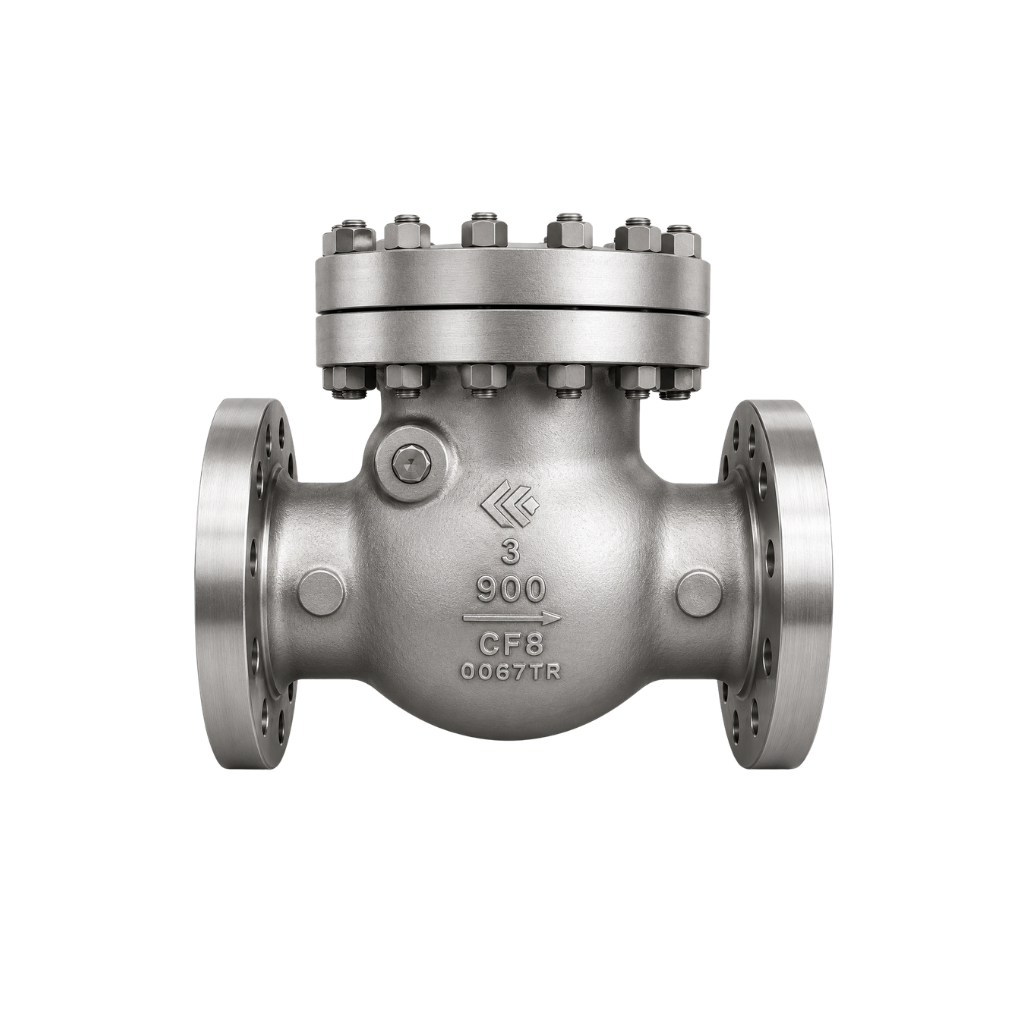

Cryogenic Check Valve

Chemoil Advance Technology supplies Cryogenic Check Valves from recognized manufacturers for reliable reverse-flow protection in low-temperature and cryogenic process systems. These valves are designed and selected for applications where conventional valve materials and sealing arrangements may not be suitable for extremely low operating temperatures.

A check valve operates automatically according to the direction and pressure of process flow. It permits flow in the intended direction and closes when reverse-flow conditions occur, helping protect pumps, pipelines, storage systems and other process equipment from unwanted backflow.

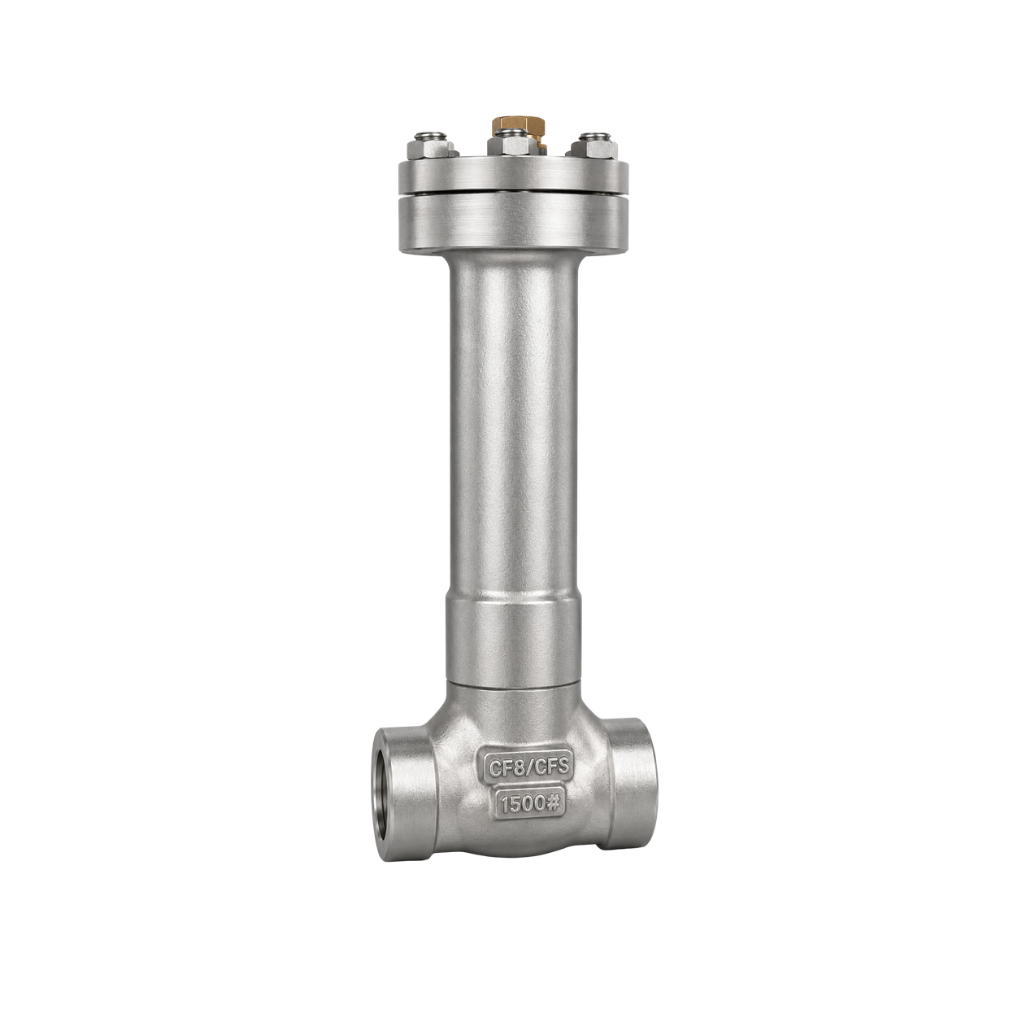

Cryogenic Check Valve

Key Features

  • ✔️ Prevents reverse flow in cryogenic systems
  • ✔️ Designed for reliable performance at ultra-low temperatures
  • ✔️ Low pressure drop with leak-tight sealing
  • ✔️ Suitable for LNG, LPG, LOX, LIN, and liquid hydrogen applications
  • ✔️ Manufactured to international cryogenic standards

Technical Specifications

Parameter Specification
Size Range DN15 to DN300 (½`` to 12``)
Pressure Rating ANSI Class 150 / 300 / 600, PN16 to PN100
Body Material Stainless Steel (CF8, CF8M, CF3M), Low Temperature Carbon Steel (LTCS)
End Connection Flanged, Butt Weld, Socket Weld
Design Standard API 594, BS 6364, ASME B16.34
Temperature Range -196°C to +80°C (Depending on Material & Design)

Need Help Selecting the Right Cryogenic Check Valve?

Our experts are ready to help you choose the best solution for your application.
