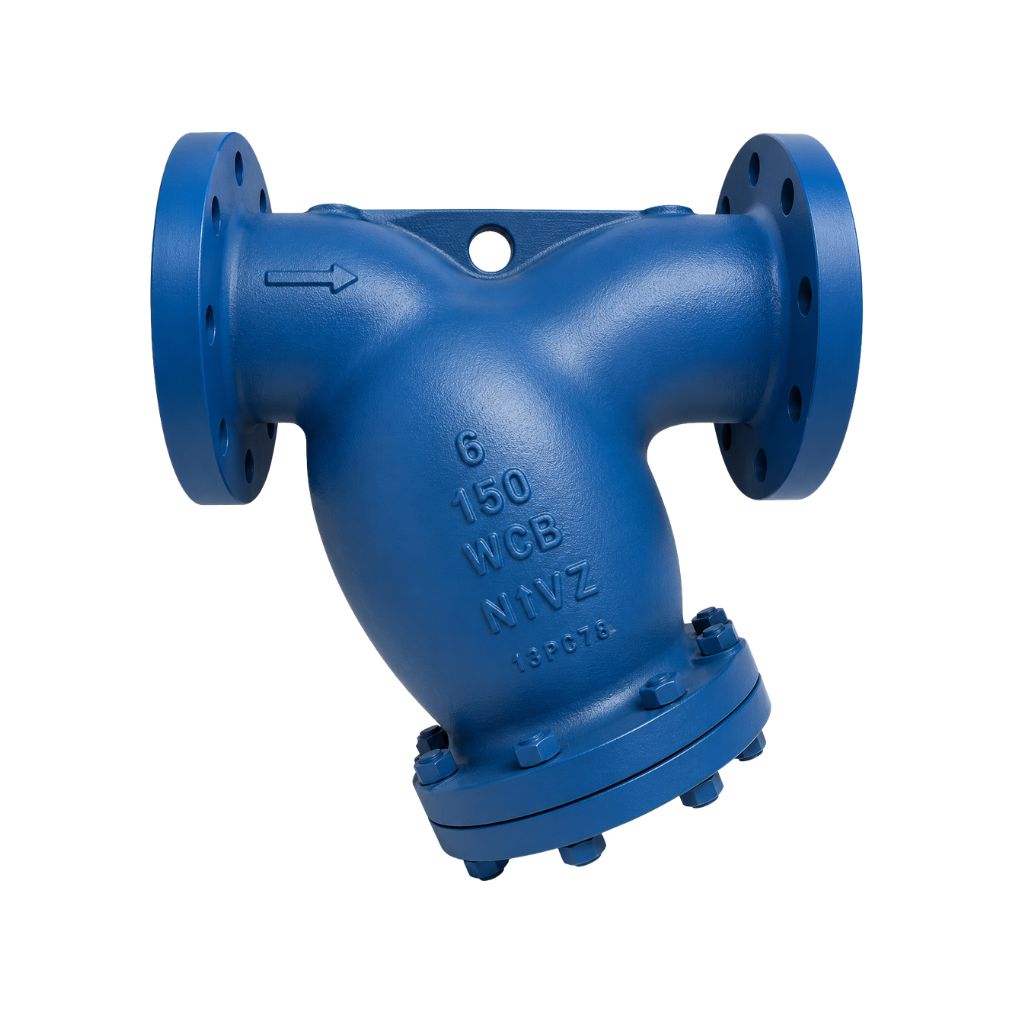

Y Type Strainer
Y Type Strainer
Chemoil Advance Technology supplies Y Type Strainers from recognized manufacturers for removing suspended solids, debris and unwanted particles from process pipelines. The compact Y-shaped body provides a practical filtration arrangement for protecting downstream equipment such as pumps, control valves, meters, compressors and other process components.
The strainer contains a removable screen or perforated element that captures particles as the process fluid passes through the pipeline. The collected material can be removed during maintenance by accessing the strainer element through the designated cover or cleaning arrangement.
AUTHORIZED DEALER BRANDS
×
![]()
Key Features
- ✔️ Efficient filtration of solid particles and debris
- ✔️ Compact Y-type design with low-pressure drop
- ✔️ Easy screen removal for quick cleaning and maintenance
- ✔️ Corrosion-resistant construction for long service life
- ✔️ Suitable for liquid, gas, steam, and process applications
Technical Specifications
| Parameter | Specification |
|---|---|
| Size Range | DN15 to DN600 (½" to 24") |
| Pressure Rating | ANSI Class 150 / 300 / 600, PN16 to PN100 |
| Body Material | Cast Steel, Carbon Steel, Stainless Steel (SS304/SS316/SS316L) |
| End Connection | Flanged, Threaded, Butt Weld, Socket Weld |
| Design Standard | ASME B16.34, ASME B16.5, API 602 |
| Temperature Range | -29°C to +425°C (Depending on Material & Service Conditions) |
