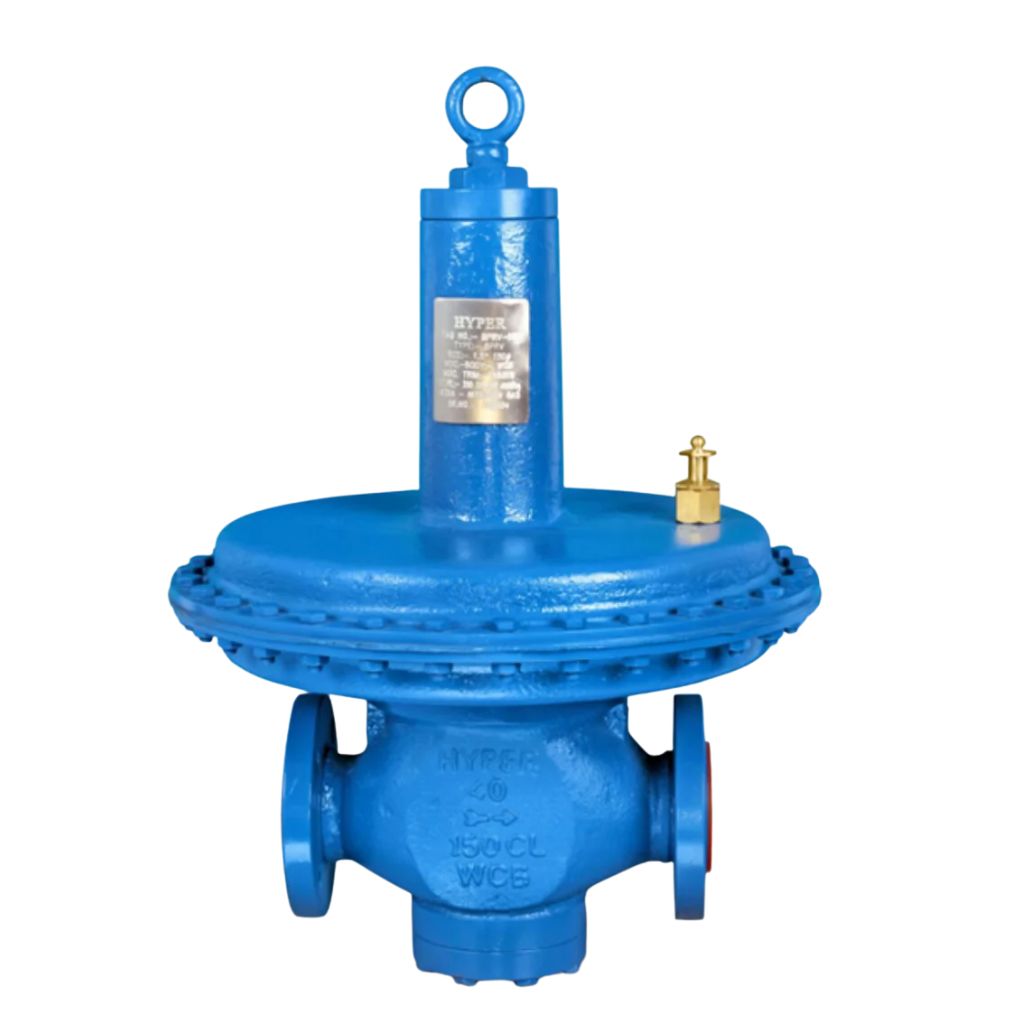

Nitrogen Blanketing Valves
Nitrogen Blanketing Valves
Chemoil Advance Technology supplies Nitrogen Blanketing Valves from recognized manufacturers for controlling nitrogen supply to storage tanks and maintaining the desired pressure within the tank vapor space. These valves are used in tank blanketing systems where an inert gas atmosphere is required to help reduce atmospheric air ingress and protect compatible stored products.
During tank emptying, cooling or other conditions that reduce vapor-space pressure, the nitrogen blanketing valve responds to the tank pressure and admits nitrogen according to its control setting. This helps maintain the specified blanketing pressure and supports a controlled vapor-space environment.
Key Features
- ✔️ Maintains accurate low-pressure nitrogen blanketing
- ✔️ Prevents oxidation, moisture ingress, and contamination
- ✔️ Minimizes nitrogen consumption with efficient pressure control
- ✔️ Fast response to pressure fluctuations
- ✔️ Corrosion-resistant construction for long service life
- ✔️ Leak-tight sealing with low maintenance requirements
- ✔️ Suitable for storage tanks and process vessels
Technical Specifications
| Parameter | Specification |
|---|---|
| Size Range | DN15 to DN150 (½`` to 6``) |
| Pressure Rating | ANSI Class 150 to 300 |
| Body Material | Carbon Steel, Stainless Steel (SS304/SS316/SS316L), Aluminium |
| End Connection | Flanged, Threaded |
| Design Standard | API 2000, ASME B16.34, ISO Standards |
| Temperature Range | -40°C to +250°C (Depending on Material & Service Conditions) |
Need Help Selecting the Right Nitrogen Blanketing Valves?
Our experts are ready to help you choose the best solution for your application.
