Piping networks expand and contract dramatically when conveying high-temperature steam, hot oil, or cryogenic gases. Without flexible compensation elements like Metallic and Non-Metallic Expansion Joints, unrestrained thermal movement exerts destructive bending moments on connected pumps, valves, and vessel nozzles.
1. Understanding Movement Types: Axial, Lateral, and Angular
Expansion joints are engineered according to EJMA (Expansion Joint Manufacturers Association) standards to absorb three principal mechanical movements:
- Axial Movement: Dimensional elongation or compression along the longitudinal axis of the pipe.
- Lateral Deflection: Perpendicular displacement of pipe centerlines caused by structural shifts.
- Angular Rotation: Bending rotation of the joint centerline, typically accommodated using hinged or gimbal bellows assemblies.

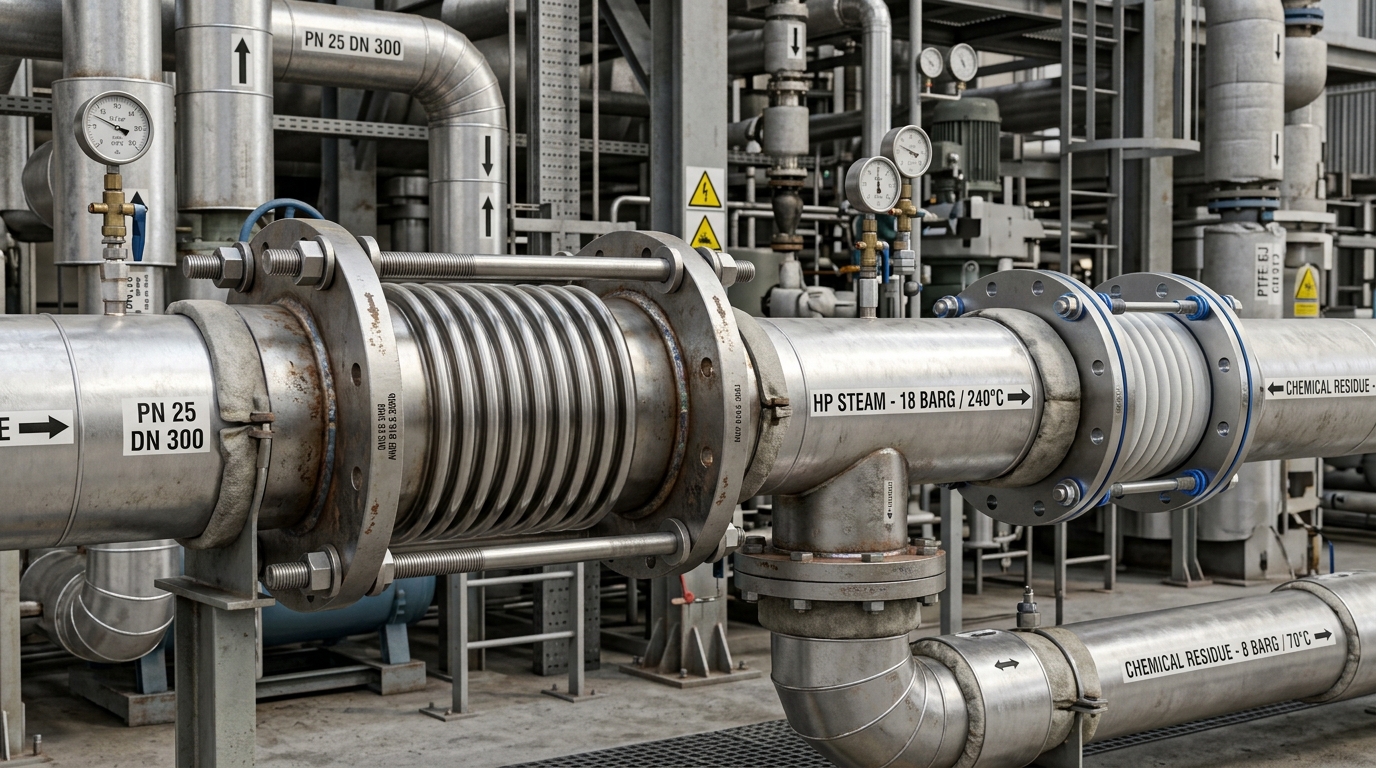

2. Metallic Bellows vs. Non-Metallic Flexible Joints
| Parameter | Metallic Expansion Bellows | Non-Metallic / PTFE Joints |
|---|---|---|
| Material Construction | Multi-ply SS304, SS316Ti, Inconel 625, Hastelloy | Virgin PTFE, Neoprene, EPDM, Reinforced Fabric |
| Temperature Range | -200°C up to +900°C | -50°C up to +200°C (PTFE) / +120°C (Rubber) |
| Pressure Rating | Full Vacuum to 100+ Bar | Typically up to 16 Bar |
| Vibration & Noise Dampening | Moderate (Requires multi-ply design) | Superior Acoustic & High-Frequency Dampening |
Chemoil precision multi-ply metallic bellows utilize several thin concentric metal plies rather than a single thick wall. This dramatically reduces spring rates, lowering reaction forces transmitted to equipment flanges while providing exceptional fatigue life.
3. Monitoring Piping Integrity with Process Instrumentation

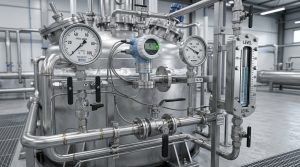

To verify that pipeline pressure and temperatures remain within allowable limits across flexible joint sections, plants install calibrated Industrial Pressure Gauges & Temperature Gauges.
