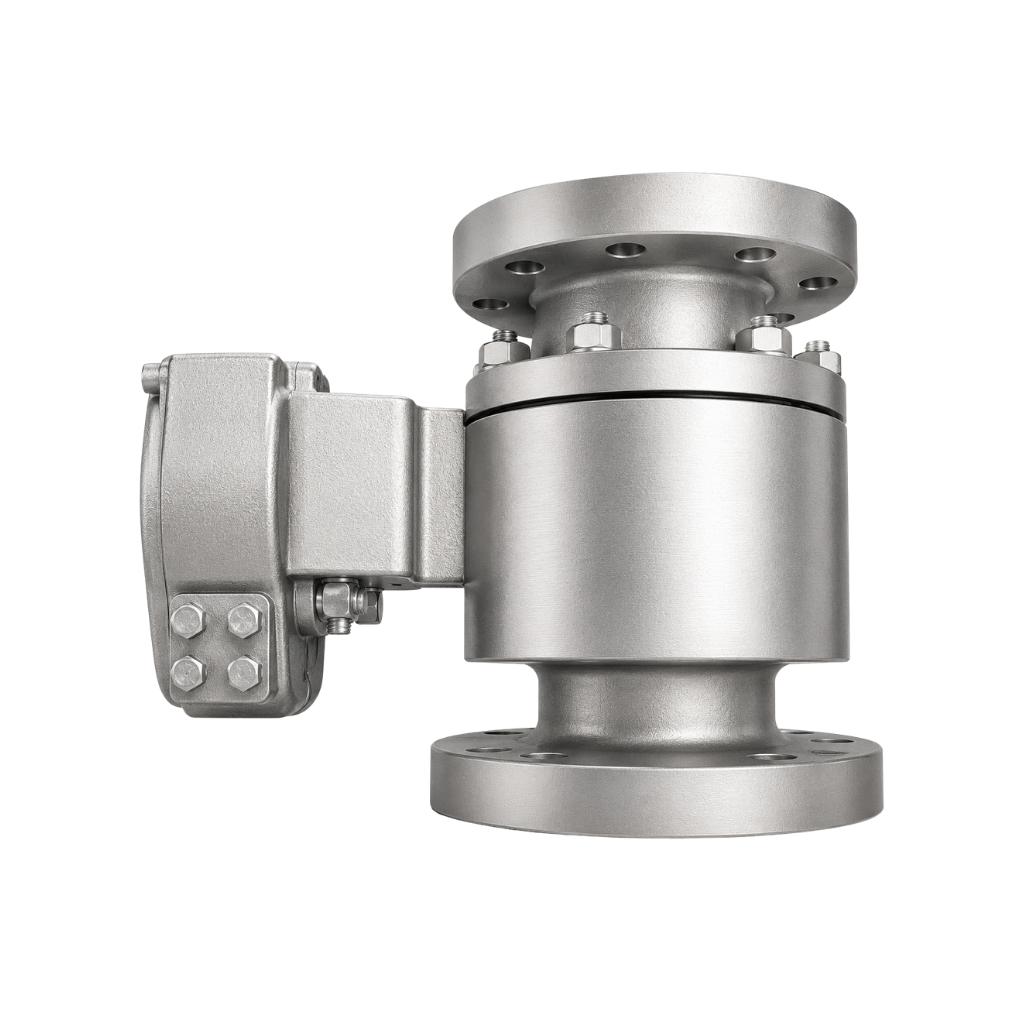

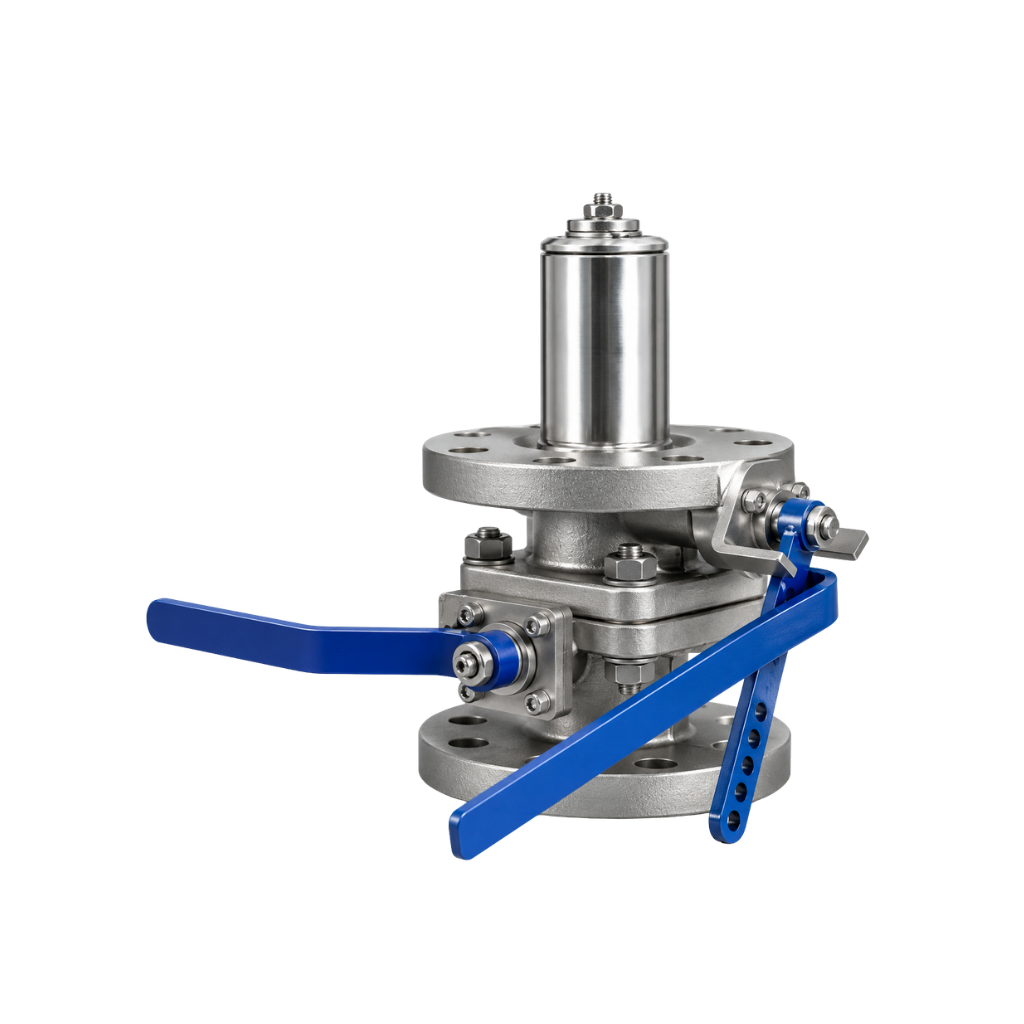

Cryogenic Ball Valve
Extended-bonnet cryogenic ball valves engineered to handle ultra-low temperature gases like LNG, liquid nitrogen, oxygen, and hydrogen.
OVERVIEW
What Are Cryogenic Valves?
Cryogenic valves operate below -50°C down to -196°C. They feature an extended bonnet column (gas column) to keep stem packing close to ambient temperature, preventing freezing and leakage.
Key Features
- ✔️ Designed for Cryogenic Service - Reliable operation in ultra-low temperature applications
- ✔️ Bubble-Tight Shut-Off - Quarter-turn ball design ensures secure, leak-free isolation
- ✔️ Extended Bonnet Design - Reduces heat transfer and protects stem sealing components
- ✔️ Low Torque Operation - Smooth quarter-turn actuation for fast and efficient valve control
- ✔️ Ideal for LNG & Industrial Gases - Suitable for LNG, LOX, LIN, LAR, LPG, and other cryogenic media
Brand Partner
Technical Specifications
| Parameter | Details |
|---|---|
| Size Range | 1/2″ - 24″ |
| Pressure Class | 150# - 1500# |
| Temperature Range | -196°C to 80°C |
| Body Materials | Stainless Steel (CF8, CF8M, CF3, CF3M), Bronze, LCB/LCC |
| Seat Materials | Kel-F, PCTFE, SS316 with Stellite 6 face |
| Bonnet Extension | BS 6364 compliant gas column length |
| End Connections | Flanged, Butt Weld, Socket Weld, Threaded |
| Operation | Lever, Gear, Pneumatic, Electric Actuator |
| Design Standards | BS 6364, ASME B16.34, API 6D |
| Face to Face | ASME B16.10 |
| Testing Standards | BS 6364 (Cryo Testing), API 598 |
| Fugitive Emission | ISO 15848-1 compliant |
