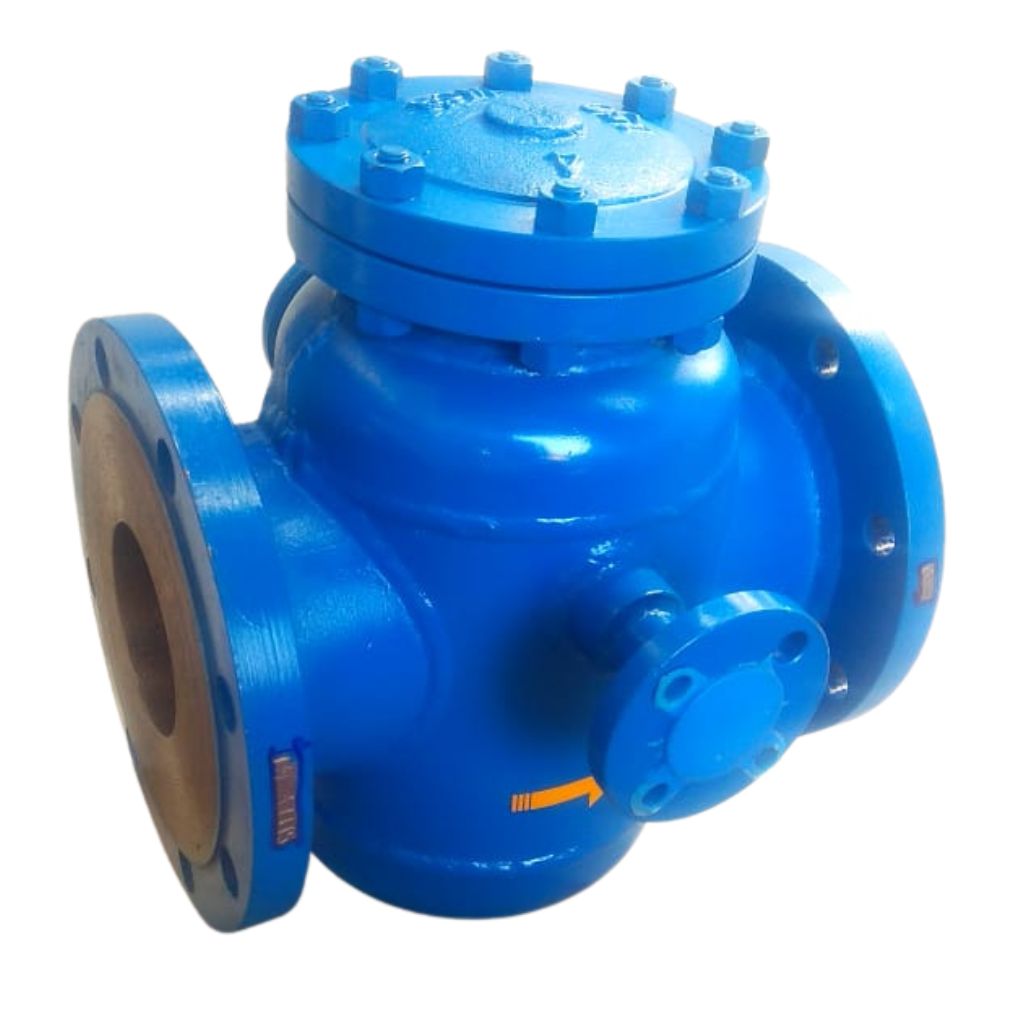

Jacketed Swing Check Valve
Jacketed Swing Check Valve
Chemoil Advance Technology supplies Jacketed Swing Check Valves from recognized manufacturers for process applications requiring automatic reverse-flow protection while helping maintain the temperature of temperature-sensitive process media. The valve combines a swing check mechanism with an external heating or cooling jacket around the valve body.
The swing check mechanism allows process flow in the intended direction and automatically closes when reverse-flow conditions occur. The external jacket provides a passage for a suitable heating or cooling medium to help maintain the temperature of the process fluid around the valve body.
AUTHORIZED DEALER BRANDS
×
![]()
Key Features
- ✔️ Jacketed body for efficient temperature control
- ✔️ Automatic non-return operation with swing disc design
- ✔️ Prevents media solidification and crystallization
- ✔️ Low-pressure drop with reliable sealing
- ✔️ Durable, corrosion-resistant construction
Technical Specifications
| Parameter | Details |
|---|---|
| Cast Carbon Steel | A 216 GR WCB | K03504 | 1.0460 |
| Low Temperature Carbon Steel (LTCS) | A 352 LCB | A 352 LCC | K03011 | 1.0566 |
| Alloy Steel Chrome Moly | A 217 C5 | A 217 C12 | A 217 C12A | A 217 WC6 | A 217 WC9 | K11752 | K 21590 | K41545 | K90941 | 1.7335 | 1.7380 | 1.7362 | 1.7386 | 1.4903 |
| Austenitic Stainless Steel | A 351 CF8 | A 351 CF3 | A 351 CF10 | A 351 CF8 | A 351 CF3M | A 3510 CF10 | A 351 CF8C | S30400 | S30403 | S30409 | S31600 | S31603 | S31609 | S34700 | S31703 | 1.4301 | 1.4306 | 1.4401 | 1.4404 | 1.4550 | 1.4438 |
| Alloy 20 | A 351 CN7M | N08020 | 1.4438 |
| Duplex Steel 2205 | A 351 CD 3MN | A 890 J92205 | S31803 | S32202 | 1.4462 |
| Super Duplex Steel 2507 | A 351 CD4MCu | A 890 5A | S32750 | 1.4501 |
| Super Duplex F55 | A 995 CD3MWCuN | S32760 |
| Hastelloy C-276 | A 494 CW 2M | N10276 | 2.4819 |
