Jacketed Valves

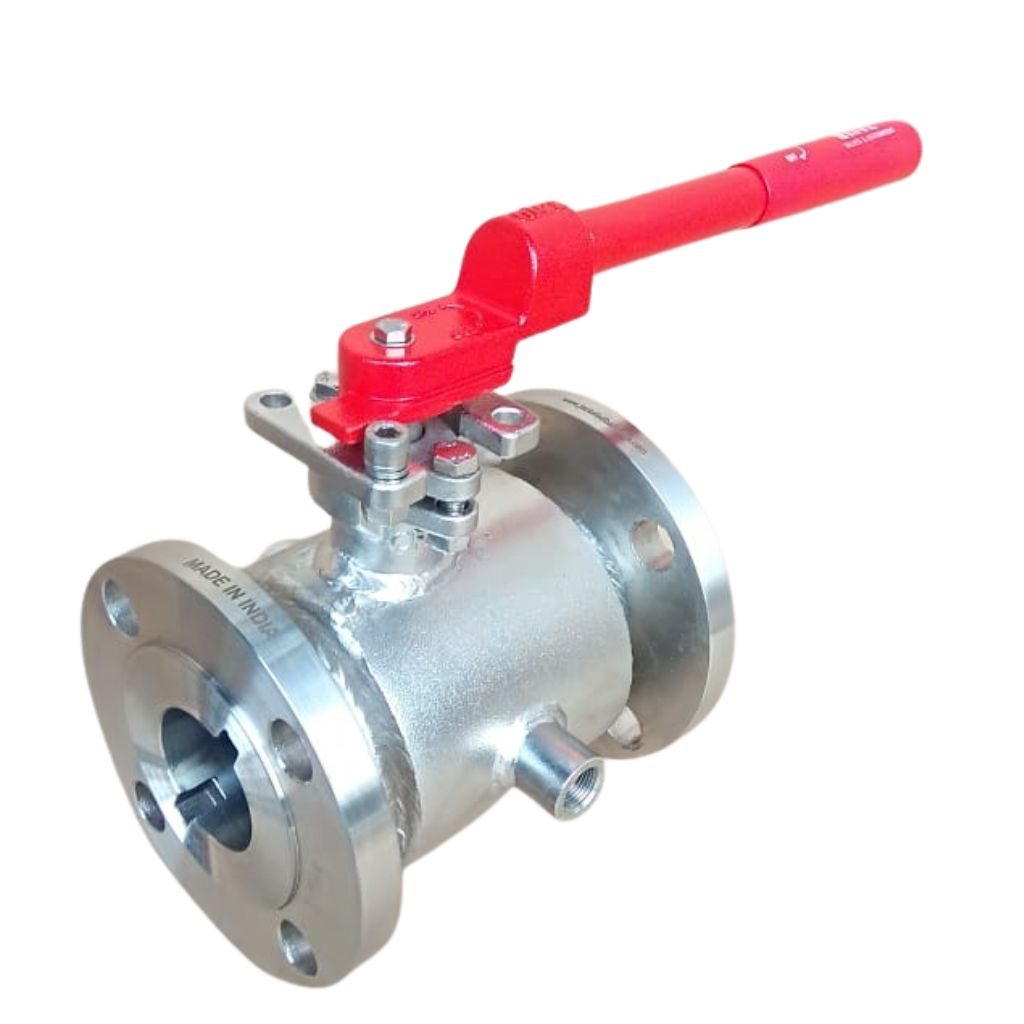

Partial Half Jacketed Ball Valve
Full and partial jacketed valves designed to circulate steam, hot water, or thermal oil to maintain media fluidity in viscous services.
OVERVIEW
What Are Jacketed Valves?
Jacketed valves feature an integrated outer chamber welded to the valve body. Circulating heating media prevents materials like sulfur, bitumen, asphalt, and resins from crystallizing or solidifying.
AUTHORIZED DEALER BRANDS
Key Features
- ✔️ Partial Jacket for Efficient Heating
- ✔️ Prevents Media Solidification
- ✔️ Bubble-Tight Leak-Free Sealing
- ✔️ Full Bore Low Pressure Drop
- ✔️ Ideal for High-Viscosity Fluids
- ✔️ Durable Low Maintenance Design
Technical Specifications
| Parameter | Details |
|---|---|
| Size Range | 1/2" - 16" (Flanges 1 size oversized, e.g. 2" Port with 3" Flange) |
| Pressure Class | 150# - 600# |
| Body Materials | Carbon Steel (WCB), CF8 (304), CF8M (316) |
| Jacket Materials | Carbon Steel, SS 304, SS 316 |
| Jacket Connections | NPT Threaded, Flanged |
| Jacket Pressure | Up to 150 psi standard |
| End Connections | Flanged (oversized) |
| Operation | Lever, Wrench, Gear, Actuator |
| Design Standards | ASME B16.34, API 6D, API 608 |
| Face to Face | Manufacturer Standard (Oversized) |
| Testing Standards | API 598, Jacket Shell Test |
