Pneumatic/Motorized Ball Valve
Pneumatic/Motorized Ball Valve

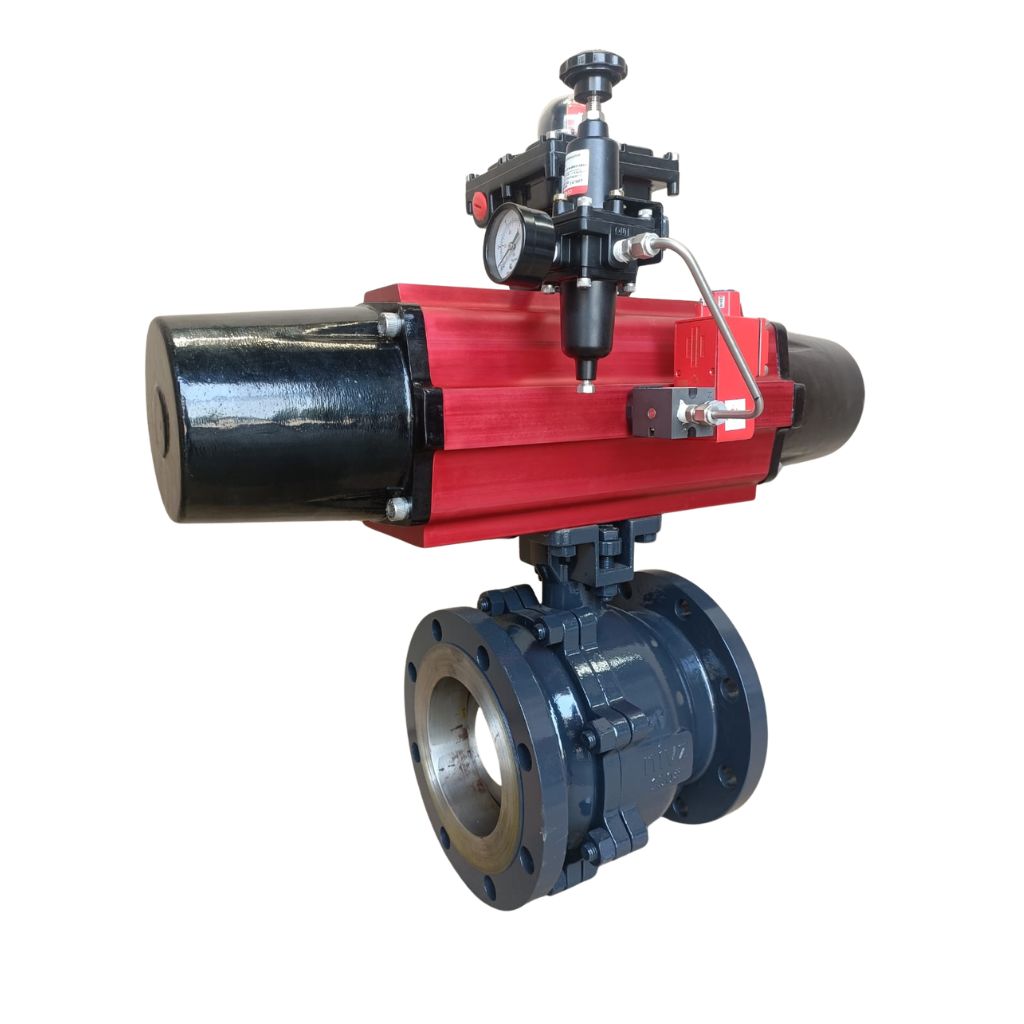

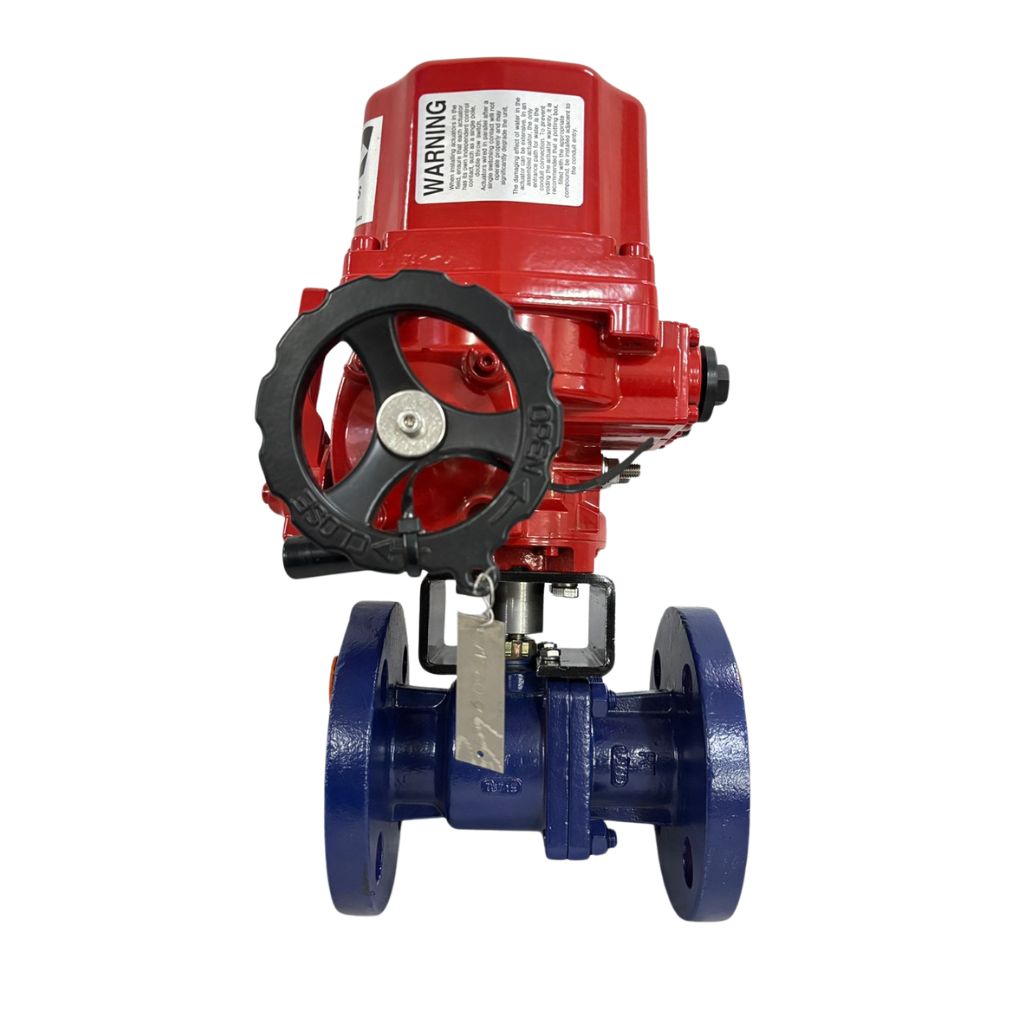

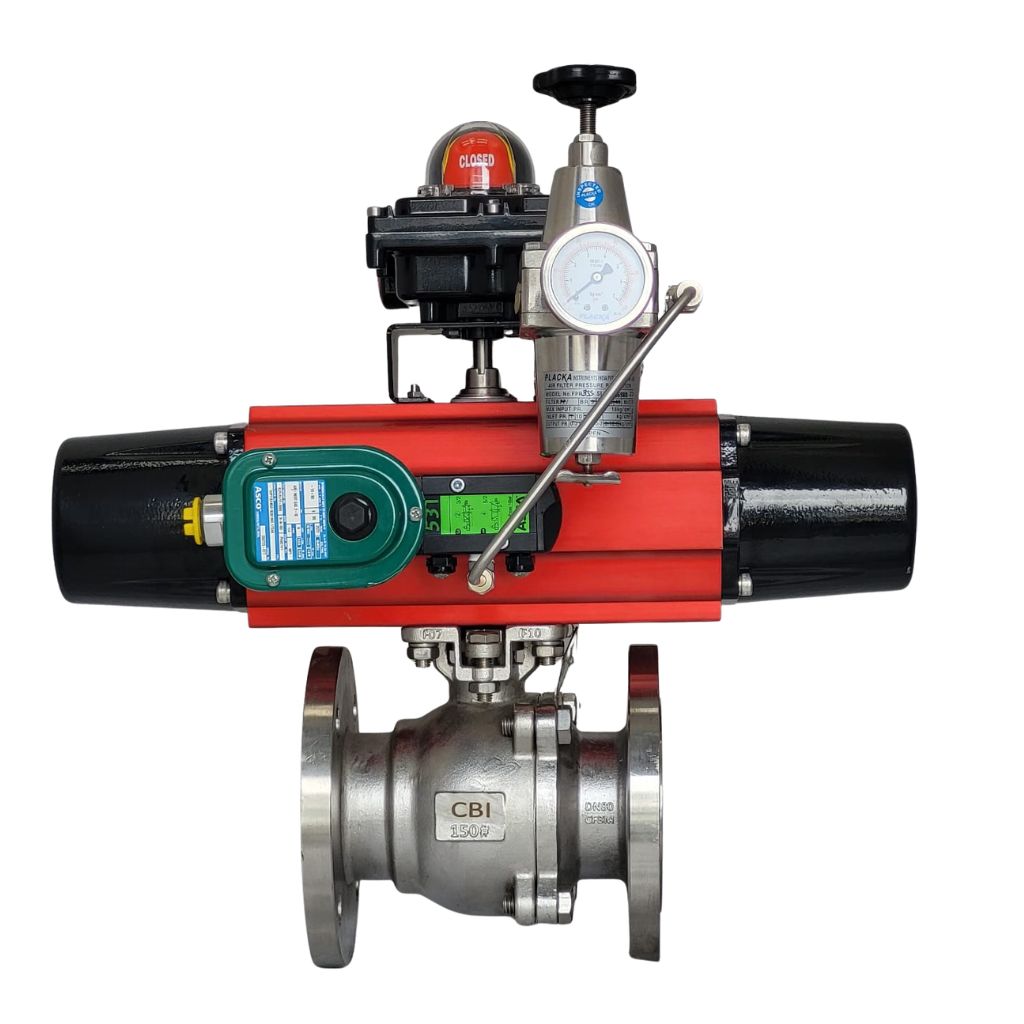

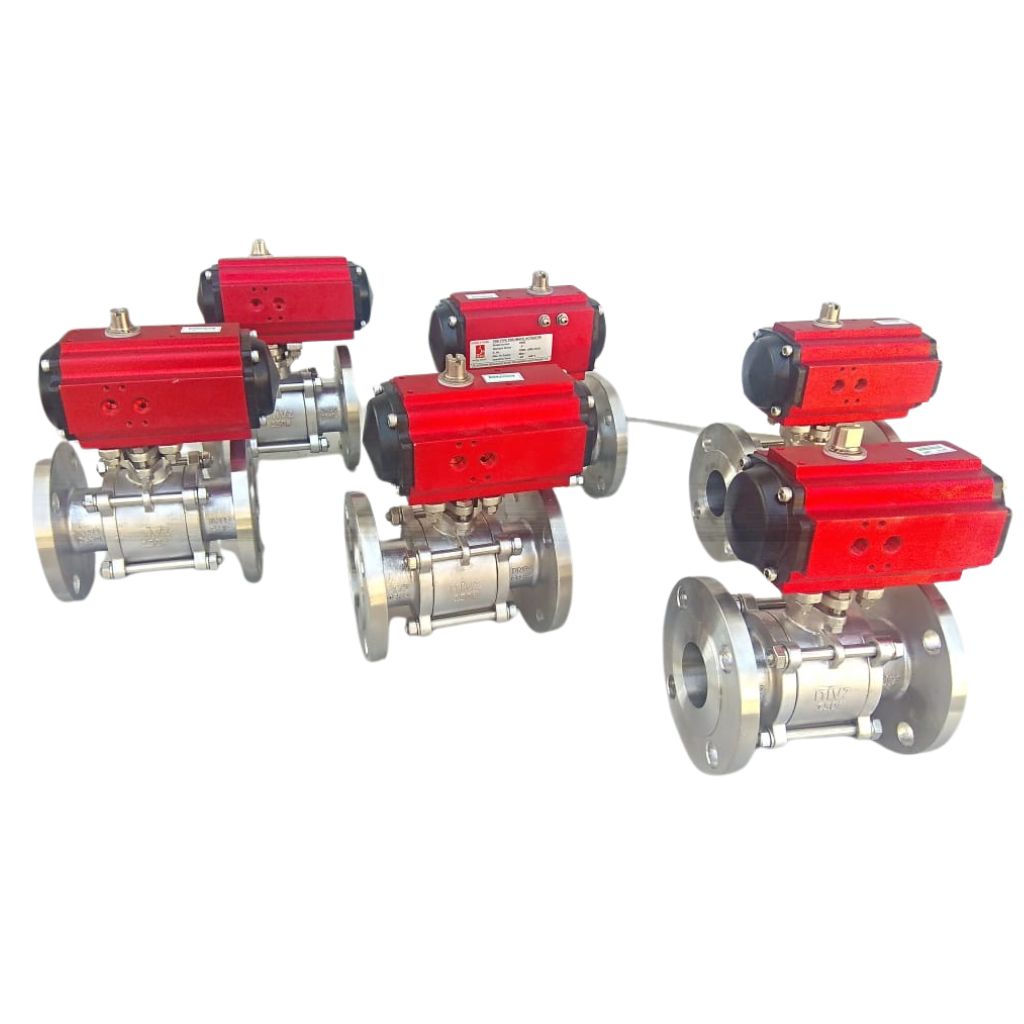

Chemoil Advance Technology supplies Pneumatic Motorized Ball Valves from recognized manufacturers for automated flow isolation and process control in industrial piping and process systems. These valves combine a quarter-turn ball valve with an actuator to provide remote or automatic operation where manual valve operation is not practical or where process automation is required.
The ball valve provides reliable on/off isolation, while the pneumatic actuation system enables the valve to be operated using compressed air and control signals from the plant automation system. This makes pneumatic actuated ball valves suitable for applications requiring frequent operation, remote control and dependable process isolation.
AUTHORIZED DEALER BRANDS
×
![]()
Key Features
- ✔️ Full automation for remote operation
- ✔️ Quarter-turn fast opening and closing
- ✔️ Bubble-tight shut-off
- ✔️ Low operating torque
- ✔️ ISO 5211 actuator mounting
- ✔️ Blowout-proof stem
- ✔️ Anti-static device (Optional)
- ✔️ Fire-safe design available
Technical Specifications
| Parameter | Details |
|---|---|
| Body Type | Floating and Trunnion Mounted Ball Valves |
| Valve Type | Single Piece / Two Piece / Three Piece |
| Body | LCB, WCB, CF8, CF3, CF8M, CF3M, 4A, 5A, 6A, Monel |
| Ball | CF8M, CF8, CF3M, CF3, Special On Request |
| Stem | SS 304, SS 316, Duplex, 17-4 PH, XM-19 |
| Seat | PTFE, RTFE, PEEK, M-PTFE, Metal Seated |
| Size Range |
1/2" to 4" (DN 15 to DN 100) Floating Single Piece FB & RB
1/2" to 12" (DN 15 to DN 300) Floating Two Piece, FB & RB
1/2" to 2" (DN 15 to DN 50) Floating HP Three Piece FB & RB
2" to 36" (DN 50 to DN 900) Trunnion Two-Three Piece FB & RB
1/2" X 1" to 6" X 10" (DN 15 X 1" to DN 150 X 250) 3/4 Way L Port
1" to 10" (DN 25 to DN 200) Flush Bottom Type
|
| Pressure Rating | 150# to 2500# |
| End Connection | Flanged End |
| Design Standard | BS EN 17292 / ASME B16.34 / API 6D |
| Testing Standard | API 598 |
| Temperature | -40°C to +280°C |
| Operation | Pneumatic / Motorised / Hydraulic |
| Brand | Entresol / NIVZ / Bonetti |
