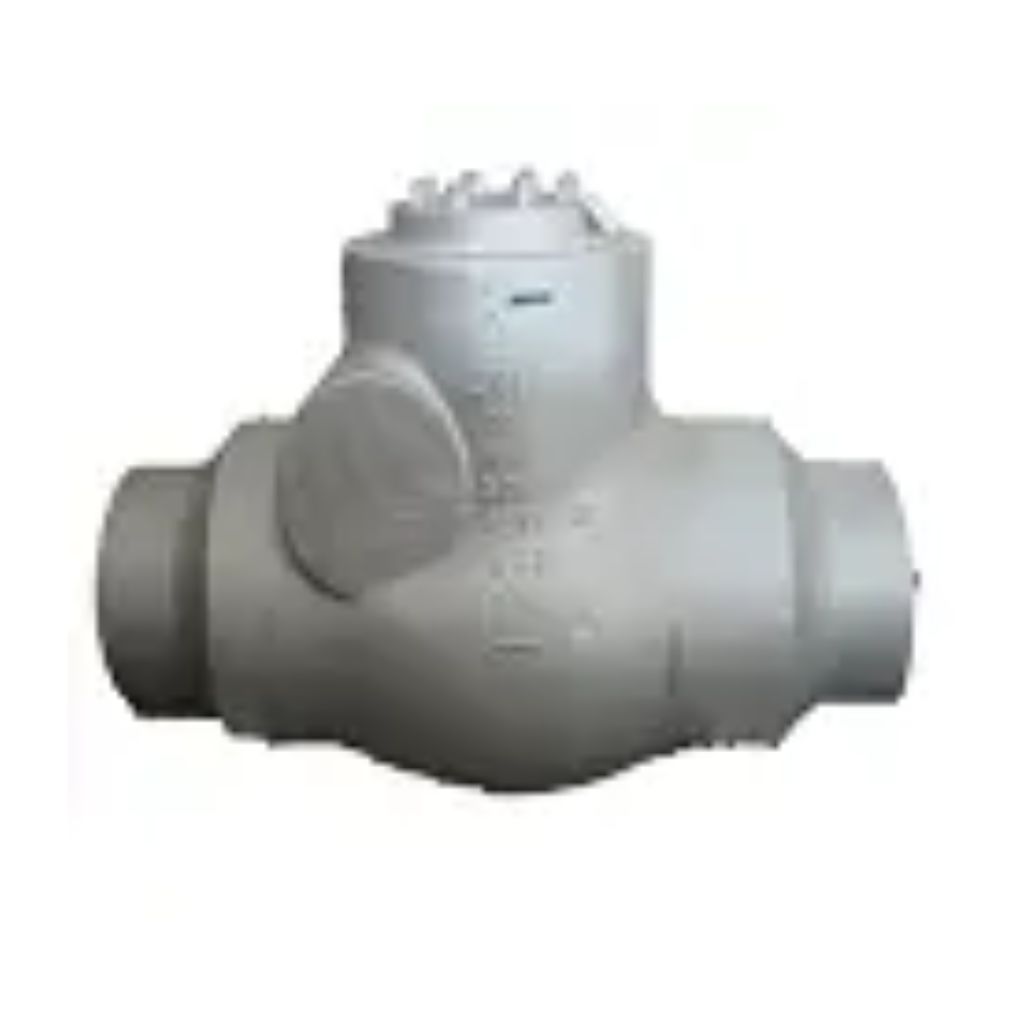

High Pressure Check Valves Series CMI-C
High Pressure Check Valves Series CMI-C
Chemoil Advance Technology supplies High Pressure Check Valves – Series CMI-C from recognized manufacturers for reliable prevention of reverse flow in demanding industrial and process applications. These valves are designed to allow process media to flow in the intended direction while automatically closing when reverse flow conditions occur.
The Series CMI-C High Pressure Check Valve is suitable for applications where dependable non-return protection is important for pumps, pipelines, process equipment and pressure systems. Automatic operation eliminates the need for external actuation, while the valve configuration can be selected according to the required process conditions and installation requirements.
AUTHORIZED DEALER BRANDS
×
![]()
Key Features
- ✔️ Heavy-Duty Forged Steel Construction
- ✔️ Reliable Non-Return Flow Protection
- ✔️ High Pressure & High Temperature Capability
- ✔️ Low Pressure Drop with Optimized Flow Design
- ✔️ Precision Machined Internal Components
- ✔️ Leak-Proof Metal-to-Metal Sealing
- ✔️ Compact Design with High Mechanical Strength
- ✔️ Corrosion Resistant Materials for Long Service Life
- ✔️ Available in Multiple End Connections
- ✔️ Manufactured to International API & ASME Standards
Technical Specifications
| Parameter | Details |
|---|---|
| Valve Type | Swing or Tilting Disc Check Valve |
| Material of Construction (MOC) | Forged & Cast All Grade |
| Size Range | 2`` through 48`` (DN 50 to DN 1200) |
| Construction | Welded Bonnet / Bolted Bonnet / Pressure Seal Bonnet |
| Pressure Rating | ASME Class 600 / 800 / 900 / 1500 / 1700 / 2700 / 4500 / Special Classes |
| End Connection | Butt Weld End / Socket Weld / Flanged End RF |
| Design Standard | API 602 / BS 5153 / ISO 15761 / IBR |
| Testing Standard | API 598 |

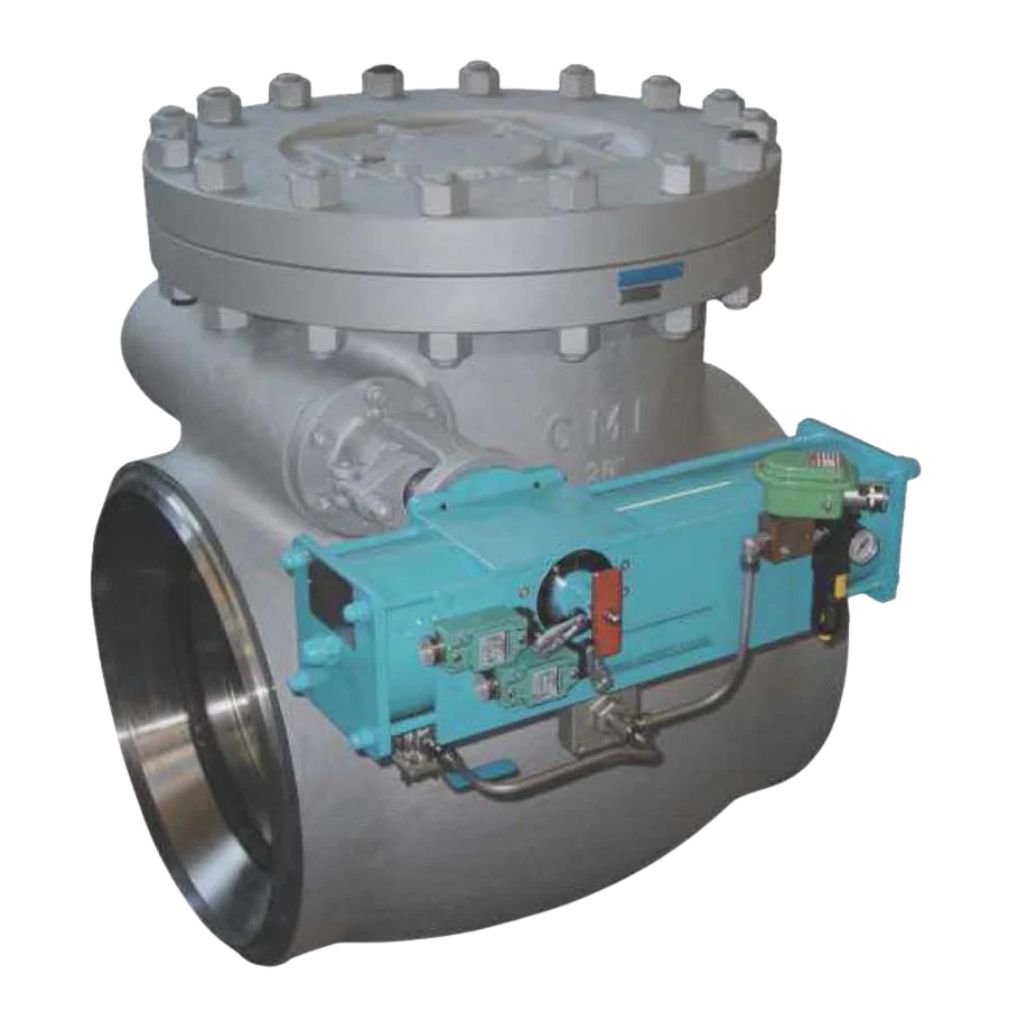

| Operation | Available Pneumatically Actuated (For Turbine Bleeding Lines) |
| Brand | BONETTI |
