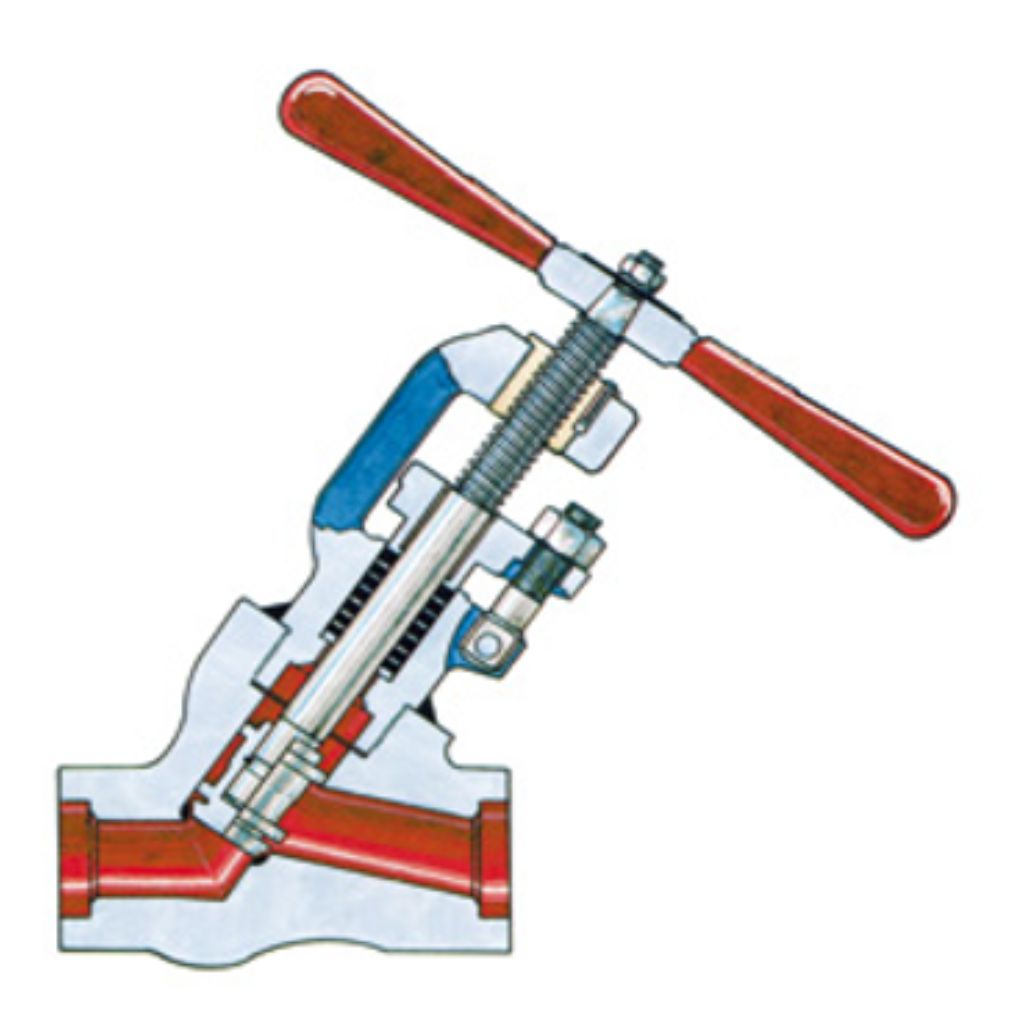

Forged “Y” Pattern Valves Series WBY
Forged “Y” Pattern Valves Series WBY
Forged “Y” Pattern Valves Series WBY are compact, high-performance industrial valves designed for reliable isolation and flow control in high-pressure and high-temperature process applications. Their angled Y-pattern body configuration provides a streamlined flow path, helping reduce pressure drop and improve operational efficiency compared with conventional globe valve designs.
Chemoil supplies Forged “Y” Pattern Valves Series WBY sourced from reliable manufacturing partners and selected for demanding industrial services. With robust forged construction, dependable sealing, and multiple material and pressure-class options, these valves are suitable for steam, oil, gas, petrochemical, power generation, and other critical process applications.
Key Features
- ✔️ Forged body construction for high mechanical strength
- ✔️ Y-pattern design for improved flow characteristics
- ✔️ Reduced pressure drop compared with conventional globe configurations
- ✔️ Suitable for high-pressure and high-temperature services
- ✔️ Reliable metal-to-metal seating arrangement
- ✔️ Robust stem and bonnet construction
- ✔️ Excellent resistance to thermal and mechanical stresses
- ✔️ Compact and maintenance-friendly design
- ✔️ Available in multiple pressure classes and materials
- ✔️ Suitable for manual and automated operation
Technical Specifications
| Parameter | Details |
|---|---|
| Valve Type | Y Pattern Globe Valve |
| Material of Construction (MOC) | A105N, LF2, F304L, F316L, F317, F321, F347, F5, F9, F11, F22, F91, F51, F53, F55, F60, Inconel, Monel, Alloy 20 |
| Size Range | 1/4" to 4" (DN 10 to DN 100) |
| Construction | Welded Bonnet / Pressure Seal Bonnet |
| Pressure Rating | ASME Class 600 / 900 / 1700 / 2700 / 4500 / Special Classes |
| End Connection | Butt Weld End / Socket Weld |
| Design Standard | API 602 / BS 5153 / ISO 15761 / IBR |
| Testing Standard | API 598 |
| Operation | Manual / Gear / Motorised |
| Brand | BONETTI |
