Gate/Globe/Check Valve

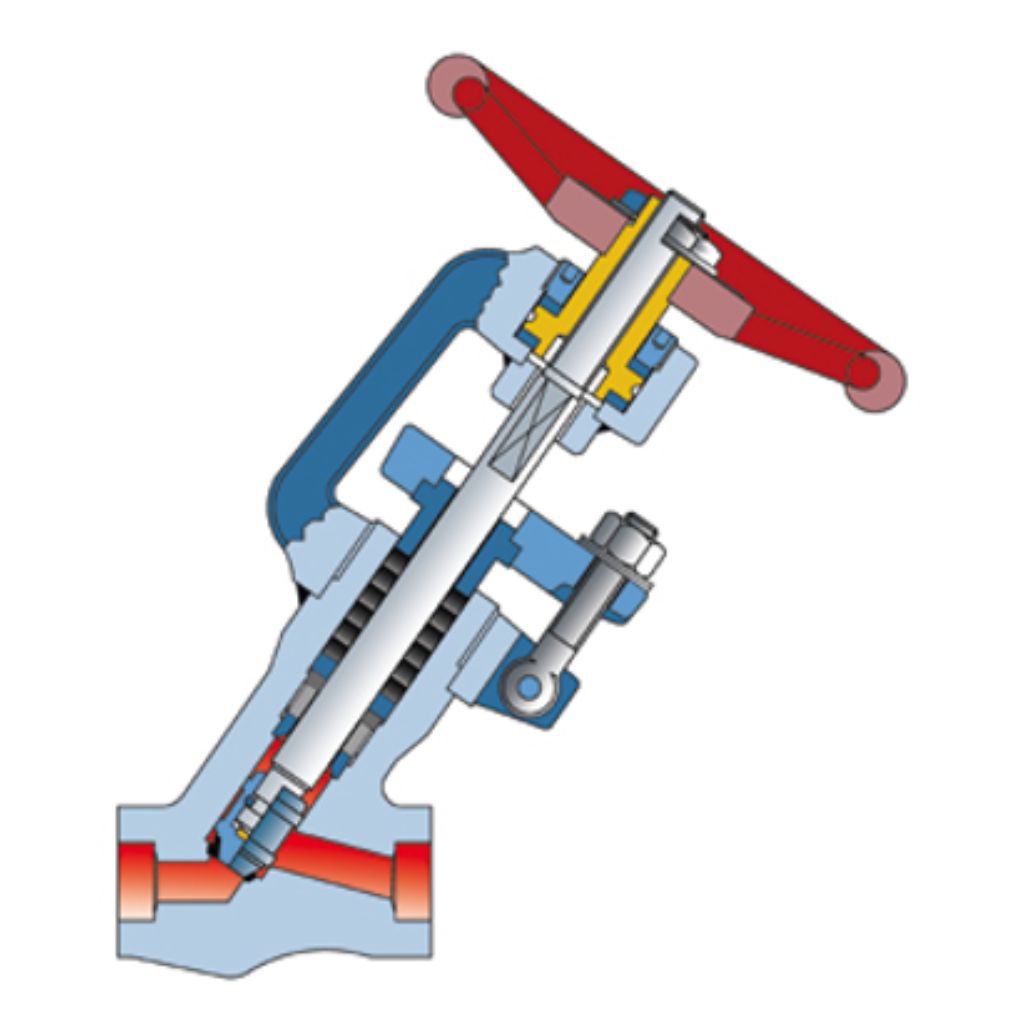

Forged “Y” Pattern Valves Series BLY
Forged “Y” Pattern Valves Series BLY
Forged “Y” Pattern Valves Series BLY are engineered for reliable flow isolation and control in demanding high-pressure and high-temperature industrial applications. The Y-pattern configuration provides a more direct flow passage, helping minimize pressure loss and turbulence while delivering dependable valve performance.
Chemoil supplies Forged “Y” Pattern Valves Series BLY from reliable manufacturing partners for critical process applications. Available in robust forged materials, multiple pressure classes, and various end-connection configurations, these valves are suitable for steam, oil, gas, petrochemical, power generation, and other severe-service systems.
AUTHORIZED DEALER BRANDS
Forged “T” Pattern Valves Series WBT & BBT are robust industrial valves designed for dependable isolation and flow control in high-pressure and high-temperature process systems. Their T-pattern body configuration provides a strong, durable flow-control arrangement suitable for demanding applications where reliable shut-off and long-term service performance are essential.</p>
<p>Chemoil supplies Forged “T” Pattern Valves Series WBT & BBT from trusted manufacturing partners, offering application-specific configurations for critical industrial services. With forged construction, reliable seating, and a range of pressure classes, materials, and end connections, these valves are suitable for oil & gas, petrochemical, power, refinery, chemical, and process industries.
×
![]()
Key Features
- ✔️ Robust forged body construction
- ✔️ T-pattern design for reliable flow control
- ✔️ Suitable for high-pressure and high-temperature applications
- ✔️ Strong resistance to mechanical and thermal stresses
- ✔️ Reliable metal-to-metal seating
- ✔️ Excellent shut-off performance
- ✔️ Durable stem and bonnet arrangement
- ✔️ Compact and heavy-duty construction
- ✔️ Multiple pressure classes and material options
- ✔️ Suitable for manual and automated operation
Technical Specifications
| Parameter | Details |
|---|---|
| Valve Type | T Pattern Globe Valve |
| Material of Construction (MOC) | A105N, LF2, F304L, F316L, F317, F321, F347, F5, F9, F11, F22, F91, F51, F53, F55, F60, Inconel, Monel, Alloy 20 |
| Size Range | 1/2" to 2" (DN 15 to DN 50) |
| Construction | Welded Bonnet / Bolted Bonnet |
| Pressure Rating | ASME Class 600 / 800 / 900 / 1500 / 1700 / 2700 / 4500 / Special Classes |
| End Connection | Butt Weld End / Socket Weld |
| Design Standard | API 602 / BS 5153 / ISO 15761 / IBR |
| Testing Standard | API 598 |
| Operation | Manual / Gear / Motorised |
| WBT | Welded Bonnet → Stronger, Leak-Tight |
| BBT | Bolted Bonnet → Easier Maintenance |
| Brand | BONETTI |
