Forged Steel Gate Valves, Globe Valves & Check Valves Bolted Bonnet Design
Forged Steel Gate Valves, Globe Valves & Check Valves Bolted Bonnet Design
Chemoil Advance Technology supplies Forged Steel Gate, Globe and Check Valves with Bolted Bonnet Design from recognized manufacturers for reliable isolation, flow regulation and reverse-flow protection in demanding industrial and process applications.

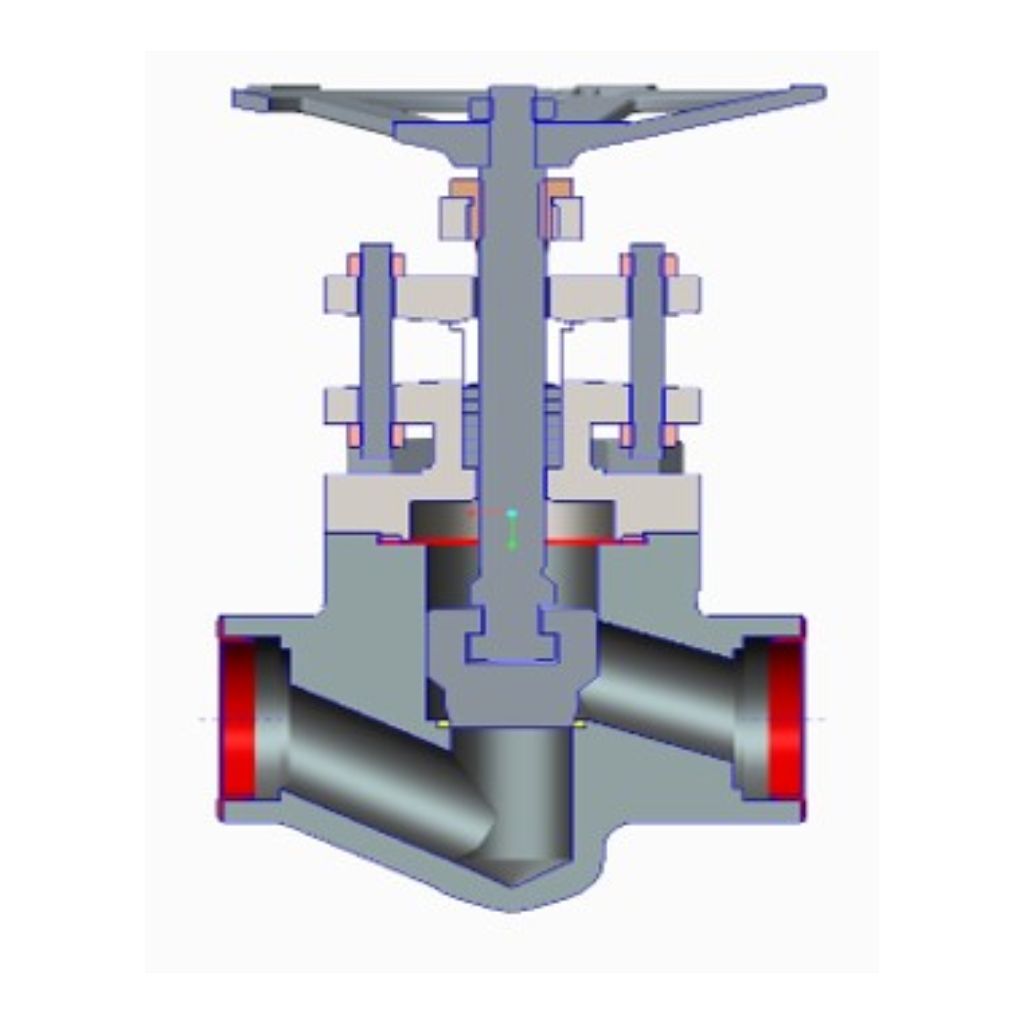

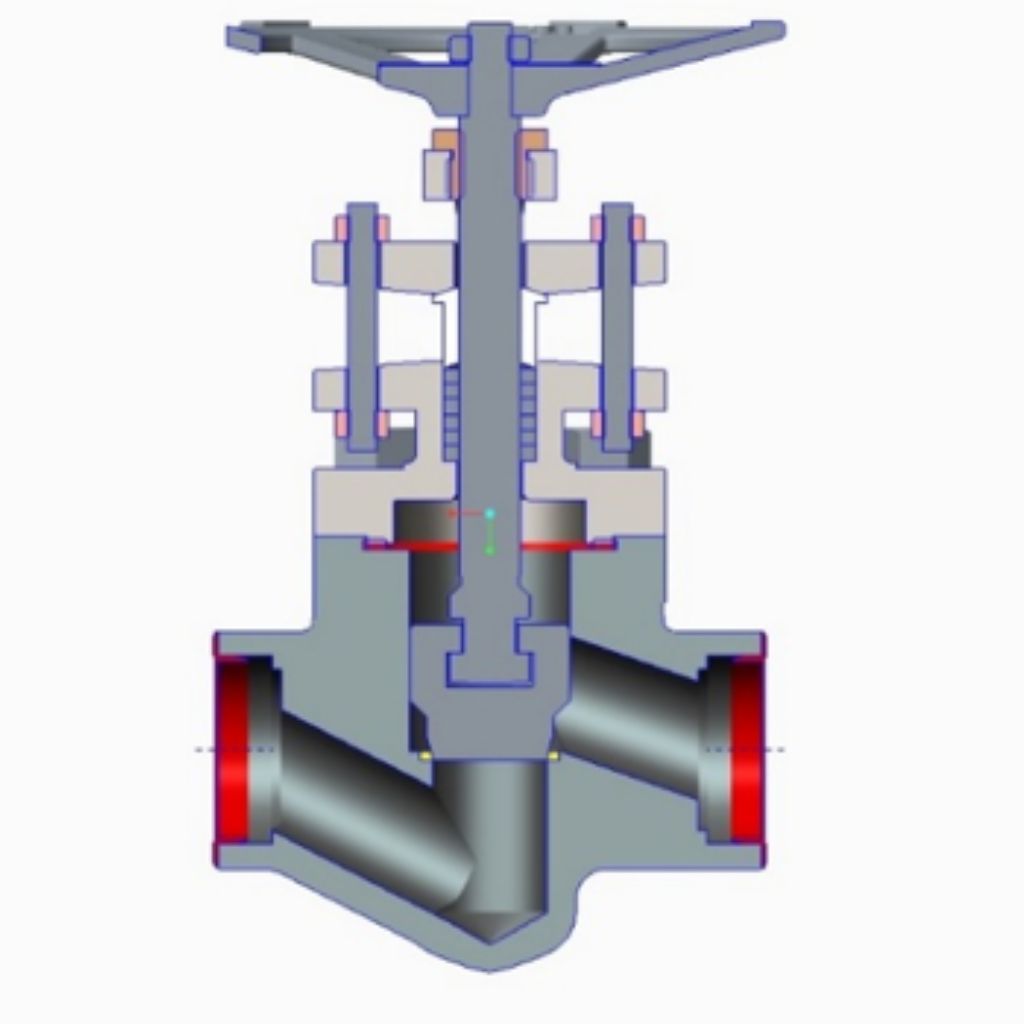

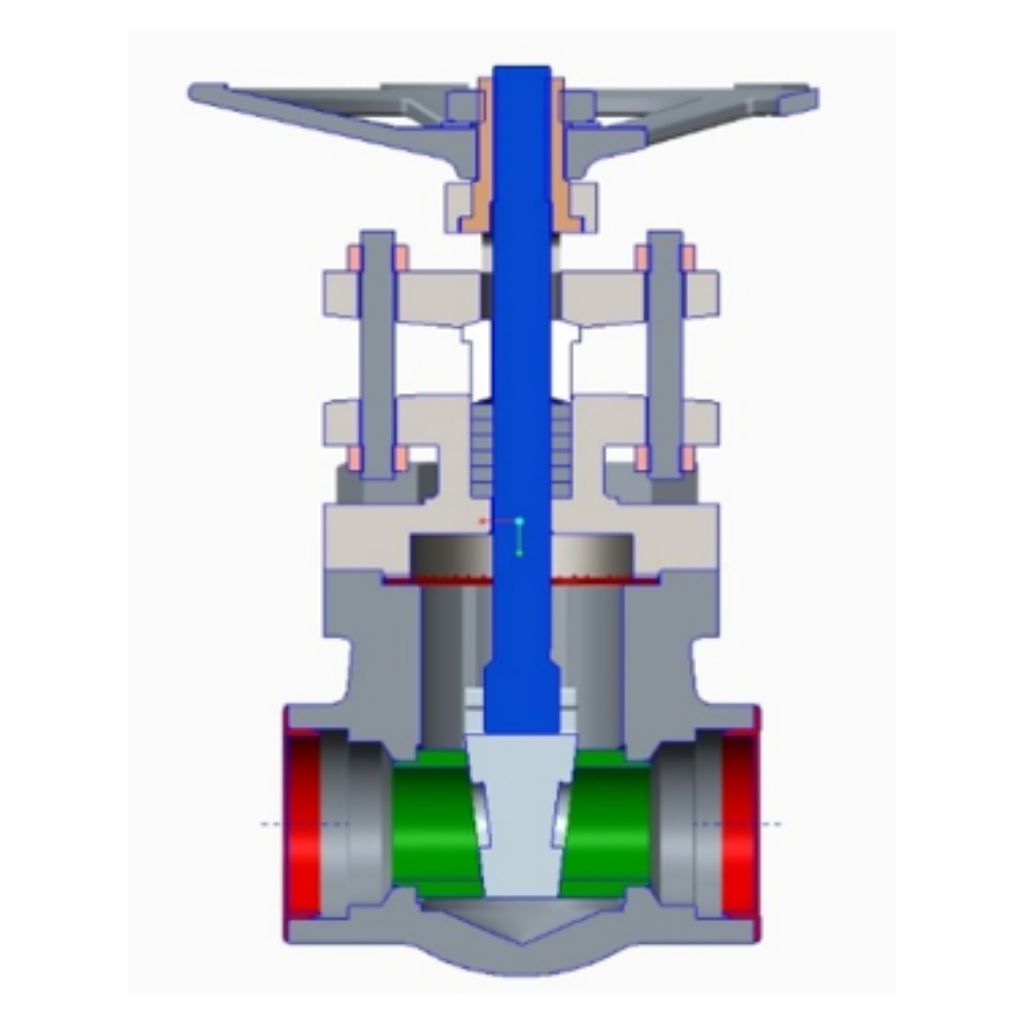

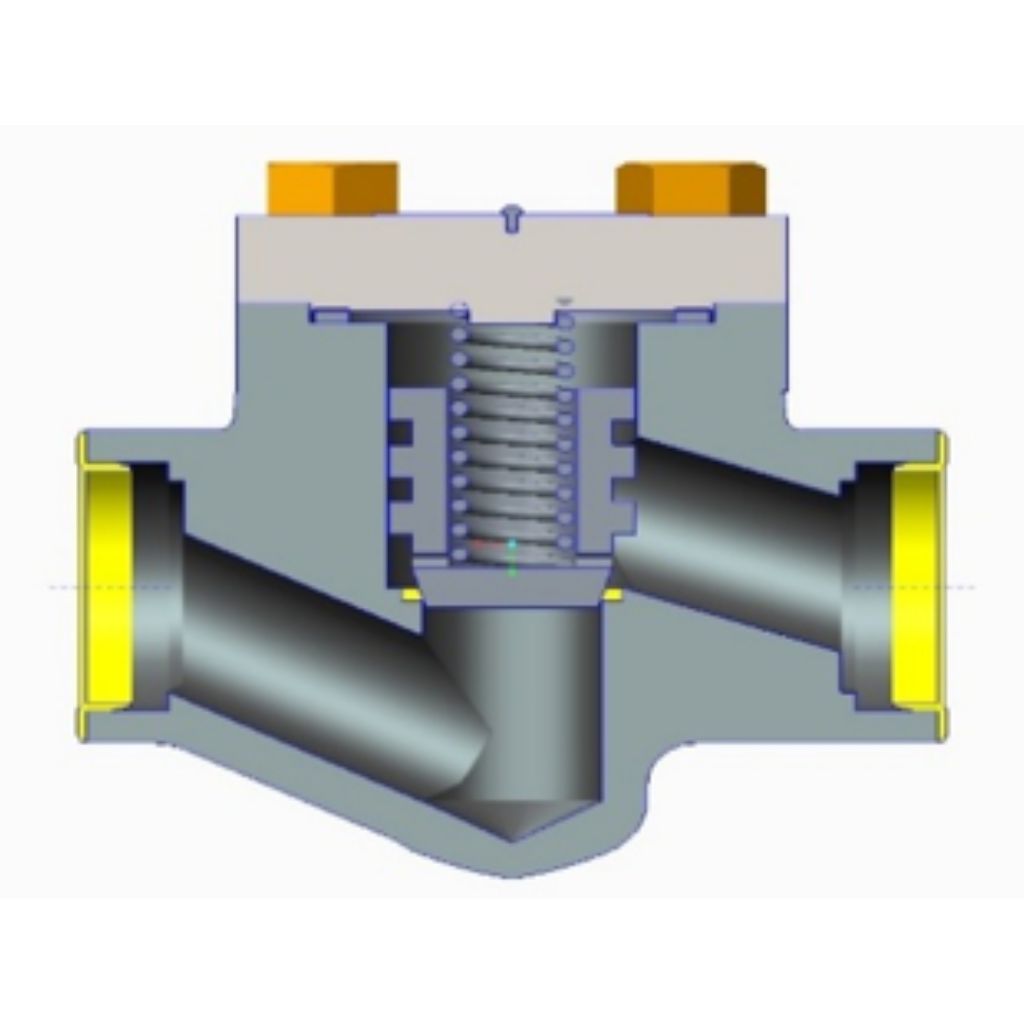

The range includes forged steel gate valves for dependable on/off isolation, forged steel globe valves for flow regulation and throttling, and forged steel check valves for preventing reverse flow in pipelines and process systems. Forged construction provides a robust pressure-containing solution for applications where strength, durability and reliable service are important.
AUTHORIZED DEALER BRANDS
×
![]()
Key Features
- ✔️ Premium Forged Steel Bolted Bonnet Construction
- ✔️ High Pressure & High Temperature Performance
- ✔️ Leak-Proof Bolted Bonnet Design
- ✔️ Precision Machined Components for Reliable Sealing
- ✔️ Blow-Out Proof Stem for Enhanced Safety
- ✔️ Renewable Seat & Backseat Design
- ✔️ Compact Design with High Mechanical Strength
- ✔️ Available in Gate, Globe & Check Valve Configurations
- ✔️ Manufactured to API, ASME & BS Standards
- ✔️ Long Service Life with Low Maintenance
Technical Specifications
| Parameter | Details |
|---|---|
| Valve Type | Gate Valve / Globe Valve / Piston Check Valve |
| Material of Construction (MOC) | A105N, LF2, F304L, F316L, F317, F321, F347, F5, F9, F11, F22, F91, F51, F53, F55, F60, Inconel, Monel, Alloy 20, Nickel Aluminium Bronze |
| Size Range | 1/2" to 2" (DN 15 to DN 50) |
| Pressure Rating | ASME 150# to 2500# |
| End Connection | Flanged End RF / Butt Weld End / Socket Weld |
| Design Standard | API 602 / BS 5153 / ISO 15761 / IBR |
| Testing Standard | API 598 |
| Operation | Manual / Gear / Motorised / Pneumatic |
| Brand | BONETTI |
