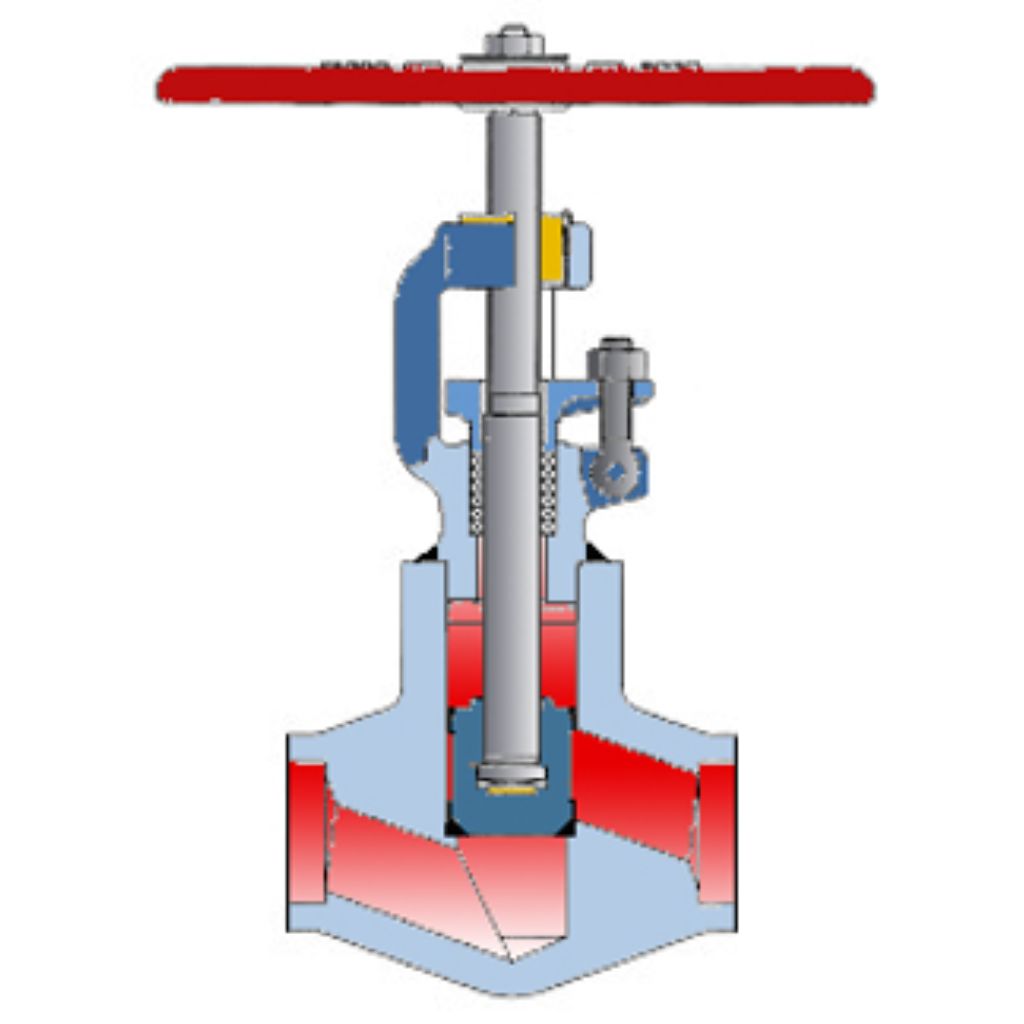

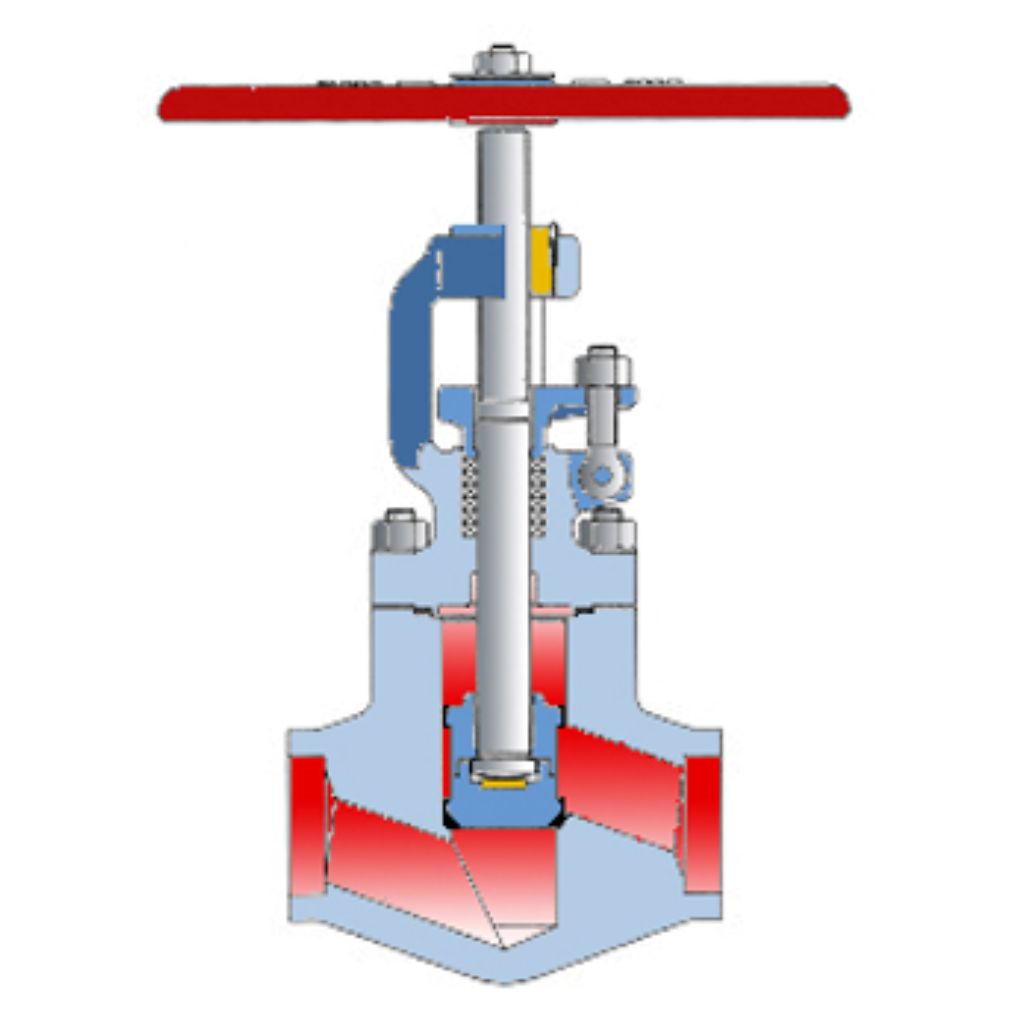

Forged “T” Pattern Valve Series WBT & BBT
Forged “T” Pattern Valve Series WBT & BBT
Forged “T” Pattern Valves Series WBT & BBT are heavy-duty valves designed for reliable isolation and flow control in high-pressure and high-temperature industrial piping systems. Their robust forged construction and T-pattern configuration provide dependable mechanical strength, tight shut-off, and consistent performance in demanding process conditions.
Chemoil supplies Forged “T” Pattern Valves Series WBT & BBT sourced from trusted manufacturing partners and selected according to application requirements. Available in carbon steel, alloy steel, stainless steel, and special alloy materials, these valves are suitable for critical services in oil & gas, petrochemical, refinery, chemical, power, and other process industries.
AUTHORIZED DEALER BRANDS
×
![]()
Key Features
- ✔️ Robust forged body construction
- ✔️ T-pattern design for reliable flow control
- ✔️ Suitable for high-pressure applications
- ✔️ Designed for high-temperature service
- ✔️ Excellent mechanical strength and durability
- ✔️ Reliable metal-to-metal seating
- ✔️ Tight shut-off performance
- ✔️ Multiple material options available
- ✔️ Socket weld and threaded connection options
- ✔️ Suitable for manual and automated operation
Technical Specifications
| Parameter | Details |
|---|---|
| Valve Type | T Pattern Globe Valve |
| Material of Construction (MOC) | A105N, LF2, F304L, F316L, F317, F321, F347, F5, F9, F11, F22, F91, F51, F53, F55, F60, Inconel, Monel, Alloy 20 |
| Size Range | 1/2" to 2" (DN 15 to DN 50) |
| Construction | Welded Bonnet / Bolted Bonnet |
| Pressure Rating | ASME Class 600 / 800 / 900 / 1500 / 1700 / 2700 / 4500 / Special Classes |
| End Connection | Butt Weld End / Socket Weld |
| Design Standard | API 602 / BS 5153 / ISO 15761 / IBR |
| Testing Standard | API 598 |
| Operation | Manual / Gear / Motorised |
| WBT | Welded Bonnet → Stronger, Leak-Tight |
| BBT | Bolted Bonnet → Easier Maintenance |
| Brand | BONETTI |
