Jacketed Strainer(Y Type & Basket Type)

Chemoil supplies Jacketed Strainers (Y Type & Basket Type) from leading global manufacturers, designed to protect pumps, valves, meters, and process equipment by removing solid particles from liquid, gas, steam, and viscous media. The jacketed construction allows steam, hot oil, or other heating media to circulate around the strainer body, preventing fluid solidification and maintaining process temperature. Available in a wide range of sizes, pressure ratings, materials, and end connections, these strainers are ideal for Chemical, Petrochemical, Oil & Gas, Pharmaceutical, Food Processing, Power, and Process Industries.

AUTHORIZED DEALER BRANDS
Jacketed Strainer(Y Type & Basket Type)

Key Features

  • ✔️ Jacketed Design for Temperature Maintenance

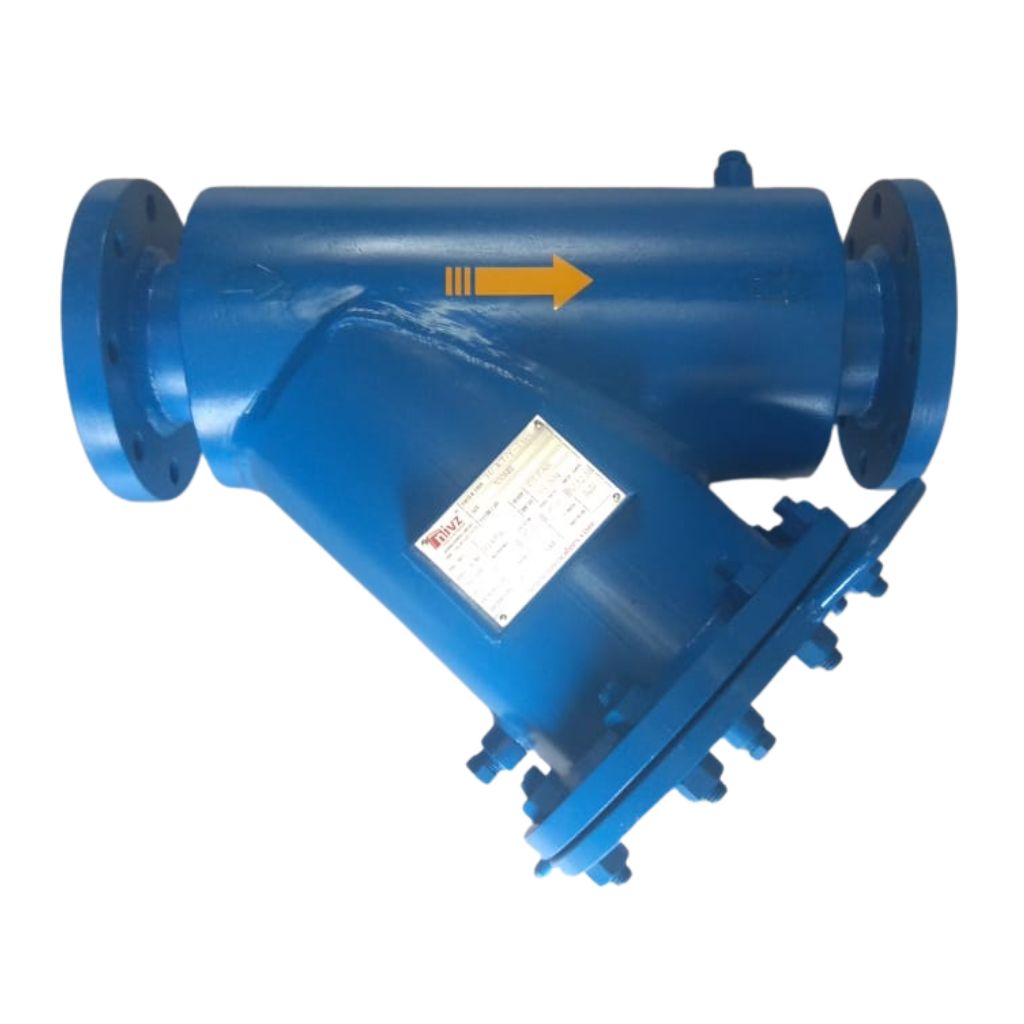

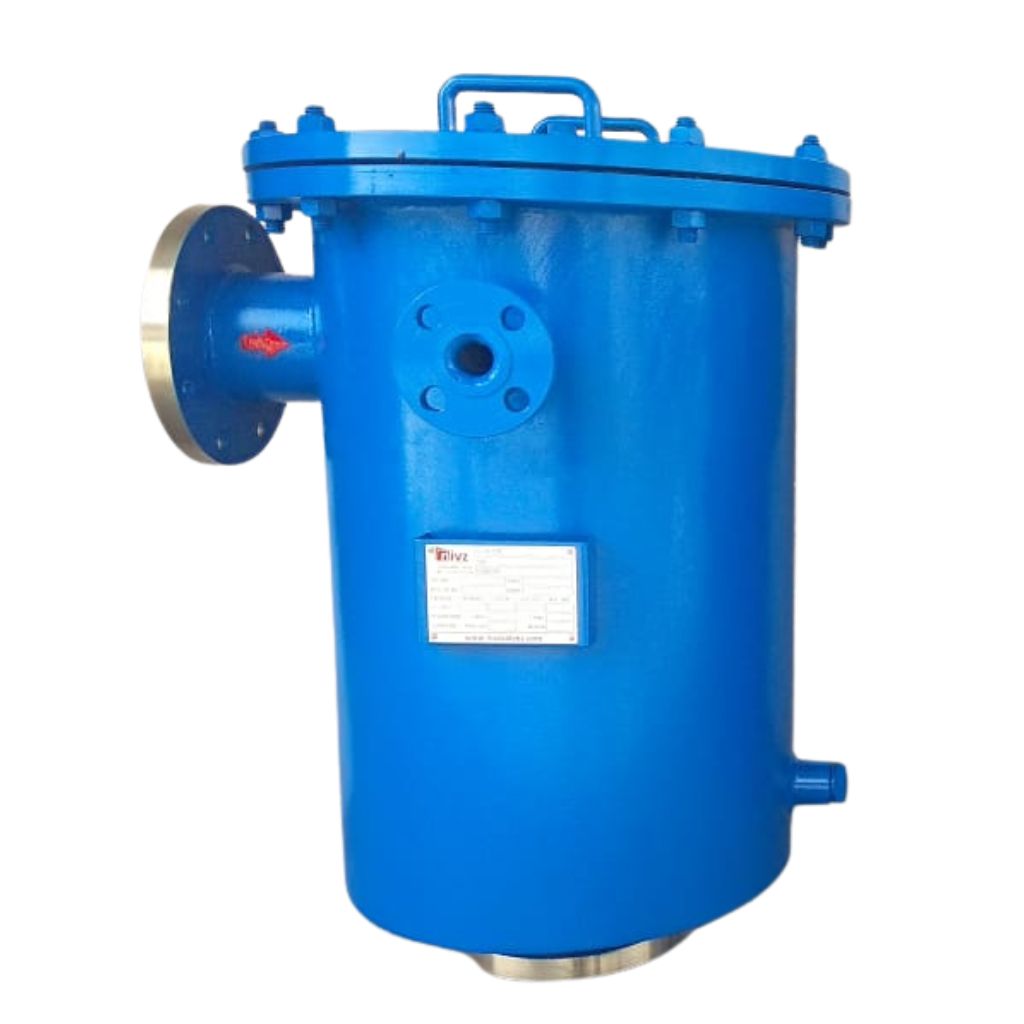

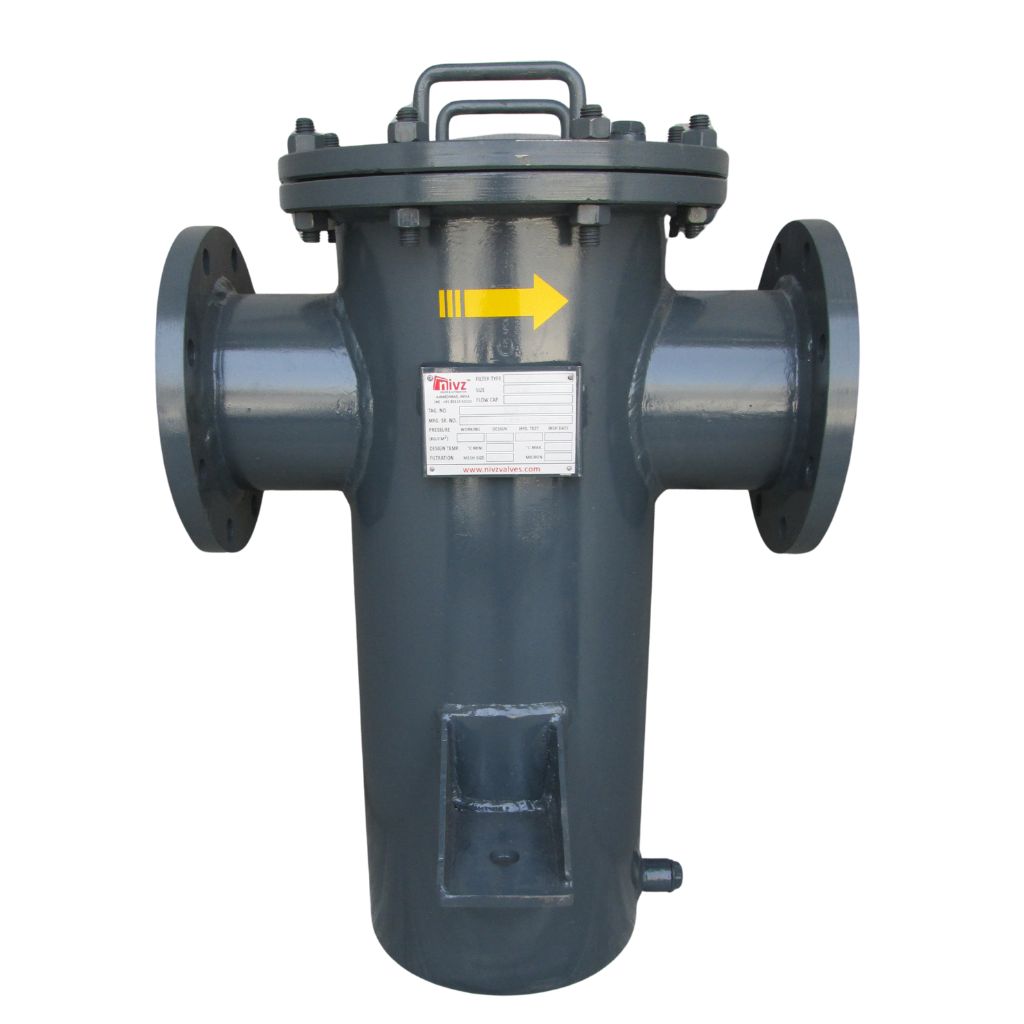

  • ✔️ Available in Y Type & Basket Type Designs
  • ✔️ Efficient Removal of Solid Particles
  • ✔️ Suitable for High Viscosity Fluids
  • ✔️ Protects Pumps, Valves & Process Equipment
  • ✔️ Low Pressure Drop Design
  • ✔️ Easy Screen Removal & Maintenance
  • ✔️ Heavy Duty Industrial Construction
  • ✔️ Available in Multiple Mesh Sizes
  • ✔️ Suitable for Steam, Thermal Oil & Heated Process Lines

Technical Specifications

Parameter Details
Design Standard Bolted Cover, Low Pressure Drop, High Filtration Area, Y Type / Basket Type, ASME Section VIII Division 1 (Fabricated Body)
Face to Face DIN EN 558-1 / Manufacturer Standard
End Connections Flanged End to ASME B16.5, BS 10 Table D/E/F/H, JIS, PN, DIN & IS Standards
Net Filtration Area Minimum 2.5 to 3 Times the Pipeline Cross-Sectional Area
Size Range DN15 to DN300 (1/2`` NB to 12`` NB)
Pressure Rating ANSI Class 150 & 300

Need Help Selecting the Right Jacketed Strainer(Y Type & Basket Type)?

Our experts are ready to help you choose the best solution for your application.
