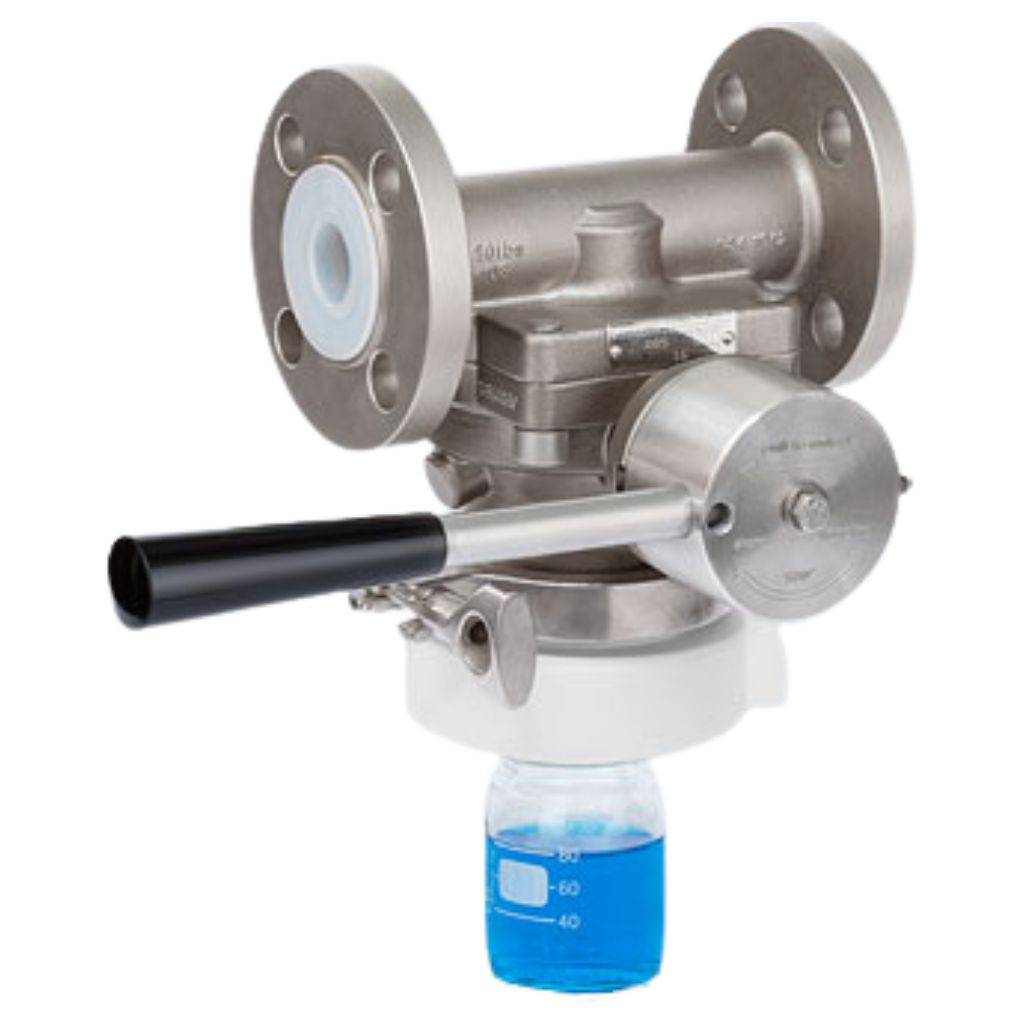

Sampling Ball Valves SSB

Chemoil supplies Sampling Ball Valves (SSB) from leading global manufacturers, providing safe, accurate, and contamination-free sampling of liquids, gases, and process media from pipelines, reactors, vessels, and storage tanks. Designed for reliable operation and leak-tight sealing, Sampling Ball Valves enable representative sample collection while minimizing operator exposure and product loss. Available in various sizes, pressure ratings, body materials, and end connections, these valves are widely used in Oil & Gas, Chemical, Petrochemical, Pharmaceutical, Food Processing, Water Treatment, and Process Industries.

Sampling Ball Valves SSB

Key Features

  • ✔️ Safe & Contamination-Free Sampling
  • ✔️ Quarter-Turn Ball Valve Operation
  • ✔️ Bubble-Tight Leak-Free Sealing
  • ✔️ Compact & Robust Construction
  • ✔️ Smooth and Reliable Operation
  • ✔️ Suitable for Liquid, Gas & Steam Service
  • ✔️ Corrosion Resistant Materials Available
  • ✔️ Low Maintenance & Long Service Life
  • ✔️ Available in Manual & Automated Versions
  • ✔️ Designed to International Standards

Technical Specifications

Parameter Details
Valve Type Sampling Ball Valve (SSB)
Size Range 1/4`` NB to 2`` NB
Pressure Rating ANSI Class 150 to 600
End Connections Screwed End, Socket Weld End, Butt Weld End & Flanged End
Body Materials Carbon Steel, Stainless Steel, Duplex Stainless Steel & Special Alloys
Ball & Stem Materials SS304, SS316 & Special Alloy Materials
Seat Materials PTFE, RPTFE, PEEK & Metal Seat (Optional)
Operation Lever Operated, Pneumatic & Electric Actuated
Operating Temperature -29°C to +250°C (Depending on Seat Material)
Design Standards ASME B16.34, API 608, ISO 17292 & MSS Standards
Applications Pipeline, Reactor, Vessel, Tank & Process Sampling

Need Help Selecting the Right Sampling Ball Valves SSB?

Our experts are ready to help you choose the best solution for your application.
