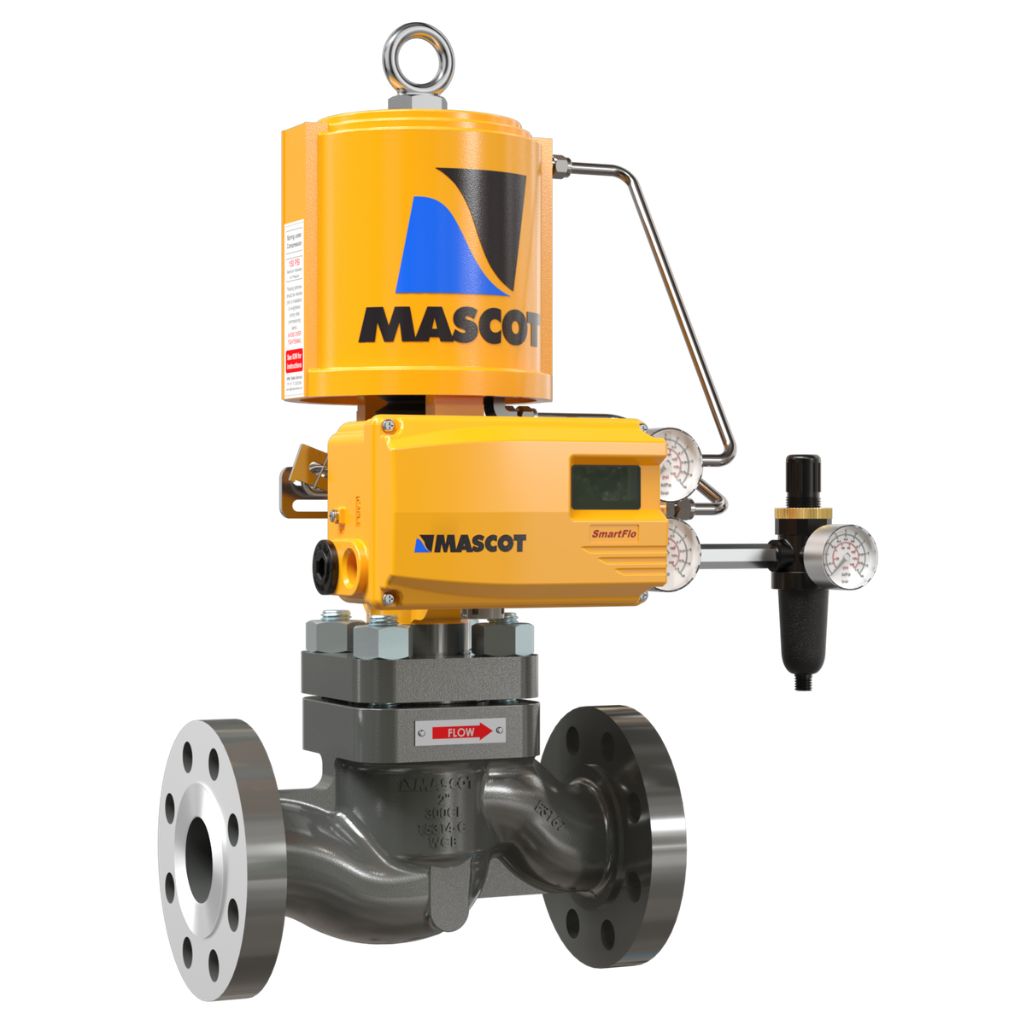

Globe Control Valve
Globe Control Valve
Chemoil Advance Technology supplies Globe Control Valves from recognized manufacturers for accurate flow regulation and process control in demanding industrial applications. The globe valve configuration provides a controlled flow path that makes it suitable for applications where precise adjustment of process flow is required.

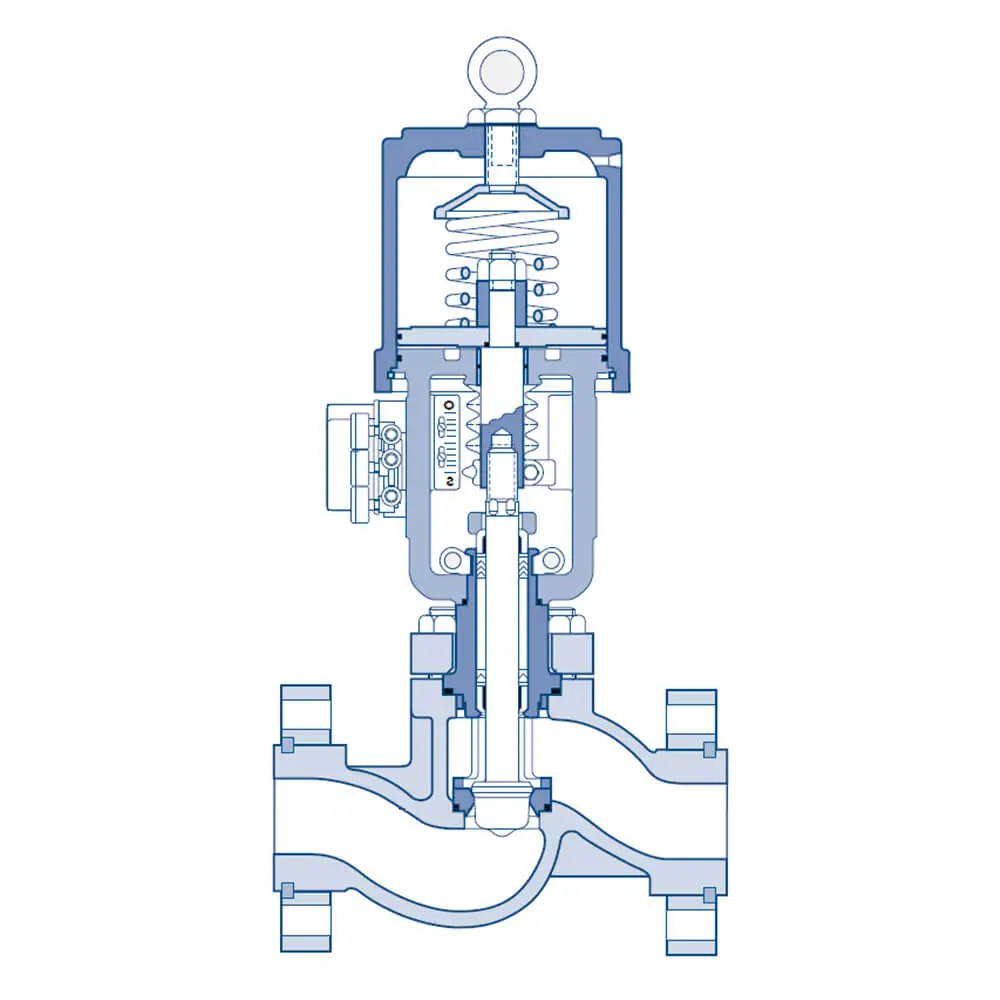

A globe control valve uses a movable plug or disc to vary the flow area through the valve. By positioning the plug in response to a control signal, the valve can regulate process flow and help maintain desired operating conditions. The valve can be combined with suitable pneumatic or electric actuation and control accessories depending on the automation requirements.
Key Features
- ✔️ Precise Flow Control: Equal Percentage, Linear, Quick Opening, Bi-Linear and Custom
- ✔️ Multiple Body Configurations: Globe, Angle, 3-Way, Y-Type, Jacketed, Forged and Fabricated
- ✔️ Heavy-Duty Construction: Robust stem guidance for reliable operation and long service life
- ✔️ High-Performance Sealing: PTFE packing, spiral wound gaskets and self-aligned seating
- ✔️ Automation Ready: Compatible with pneumatic actuators and intelligent positioners
- ✔️ Precise Flow Control - Delivers accurate modulation with equal percentage, linear, and quick-open flow characteristics
- ✔️ Multiple Body Configurations - Available in 2-way, 3-way, angle, and jacketed designs for diverse process requirements
- ✔️ Heavy-Duty Stem Guidance - Dual top heavy-duty stem guides ensure smooth operation and long service life
- ✔️ High-Performance Sealing - PTFE packing, spiral wound gaskets, and self-aligned seat provide reliable leak-tight performance
- ✔️ Automation Ready - Compatible with pneumatic spring-cylinder actuators and intelligent positioners for precise process automation
Technical Specifications
| Parameter | Details |
|---|---|
| Sizes | 0.5`` to 36`` |
| Pressure Rating | 150# to 4500# |
| Body Styles | Globe | Angle | 3-Way | Y-Type | Jacketed |
| End Connections | Flanged | Socket Weld | Butt Weld | Screwed |
| Body Materials | Carbon Steel | Stainless Steel | Alloy Steel | Duplex | Super Duplex |
| Trim Materials | SS 316 | SS 304 | 17-4PH | 904L | Monel | Hastelloy | Inconel |
| Shutoff Class | FCI 70-2 Class IV, V, VI | API 598 Optional |
| Service | General | High DP | Low Flow | Corrosive | Erosive |
| Bonnets | Standard | Extended | Cryogenic |
| Flow Characteristic | Equal Percentage | Linear | Quick Opening | Bi-Linear |
| Standards | ANSI | ISA | NACE | GOST | JIS | EN/DIN |
