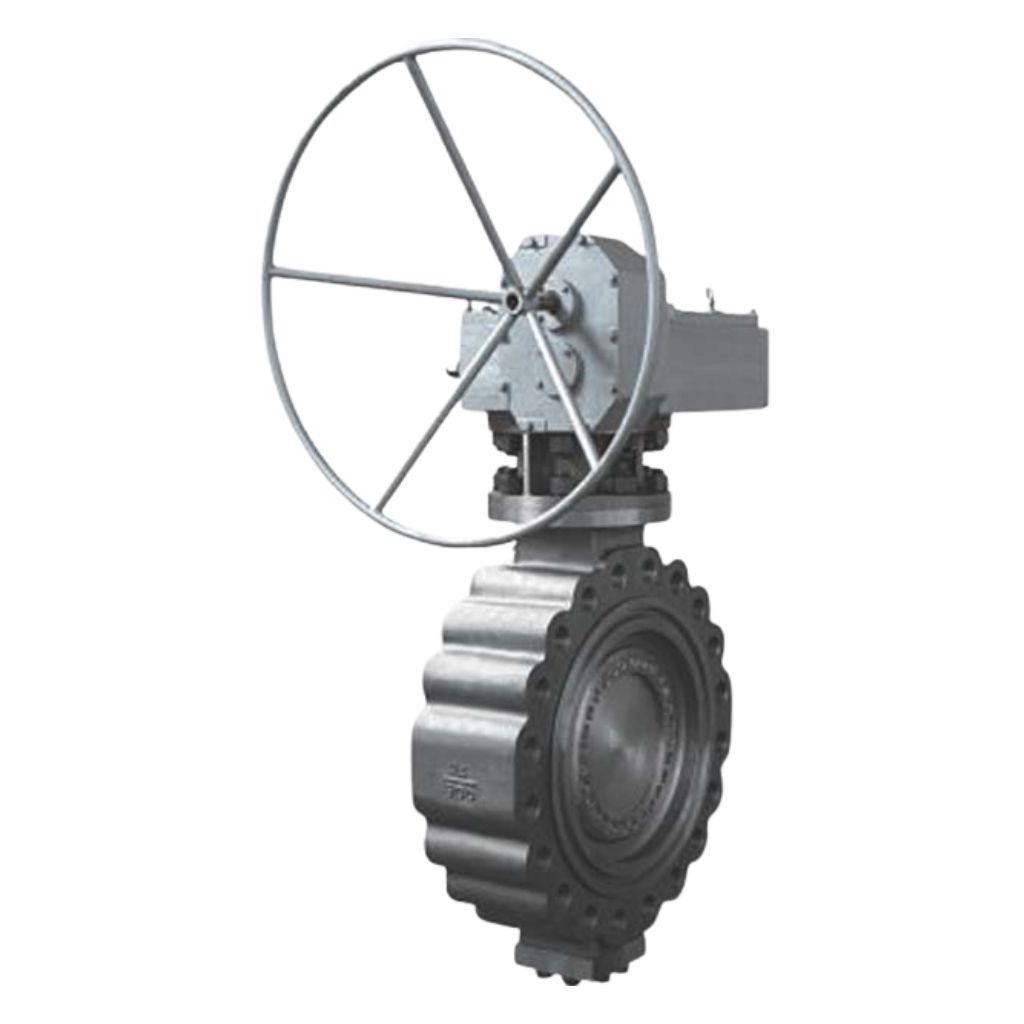

Cryogenic Side-Entry Triple-Offset Butterfly Valves
High-pressure Class 1500 side-entry triple-offset butterfly valves featuring an in-line replaceable seat design for cryogenic services down to -196°C.
OVERVIEW
In-Line Maintainable Cryogenic Isolation
Our cryogenic side-entry triple-offset butterfly valves represent the pinnacle of high-performance flow isolation for low-temperature and high-pressure services. Engineered with a side-entry retainer ring, these valves allow for the maintenance and replacement of the seat and laminated seal ring directly in the pipeline, minimizing downtime. Combining triple-offset frictionless rotation with an extended gas column bonnet, they deliver bubble-tight bi-directional shut-off at class 1500 pressures.
Key Features
- ✔️ Triple-Offset Sealing Design - Provides bubble-tight shut-off with minimal seat wear
- ✔️ Side-Entry Construction - Enables easy maintenance and extended service life
- ✔️ Cryogenic Temperature Rated - Engineered for reliable operation in ultra-low temperature environments
- ✔️ Low Torque Operation - Quarter-turn design ensures smooth and efficient valve actuation
- ✔️ Ideal for LNG & Industrial Gases - Suitable for LNG, LOX, LIN, LAR, LPG, and other cryogenic applications
Brand Partner
Technical Specifications
| Parameter | Details |
|---|---|
| Size Range | 3″ - 36″ (DN80 - DN900) |
| Pressure Rating | Class 150# - 1500# (PN20 - PN250) |
| Temperature Range | -196°C to +120°C |
| Body & Disc Material | Stainless Steel (CF8M, CF3M), LCB/LCC |
| Shaft Material | 17-4 PH, SS316, XM-19 (high strength) |
| Seat Design | Side-entry seat retainer ring for in-line maintenance |
| Seal Ring | Multi-layered laminate (SS316 + Graphite / PTFE) |
| Design Standards | API 609, ASME B16.34, BS 6364 |
| Testing Standards | BS 6364 (Cryo Testing), API 598 (Seat Leakage) |
| Tightness | Bi-directional bubble-tight shut-off (Class VI) |
