Butterfly Control Valve
High-performance butterfly control valves featuring a double eccentric disc design for precise flow regulation, reduced torque, and reliable shut-off in demanding industrial applications.

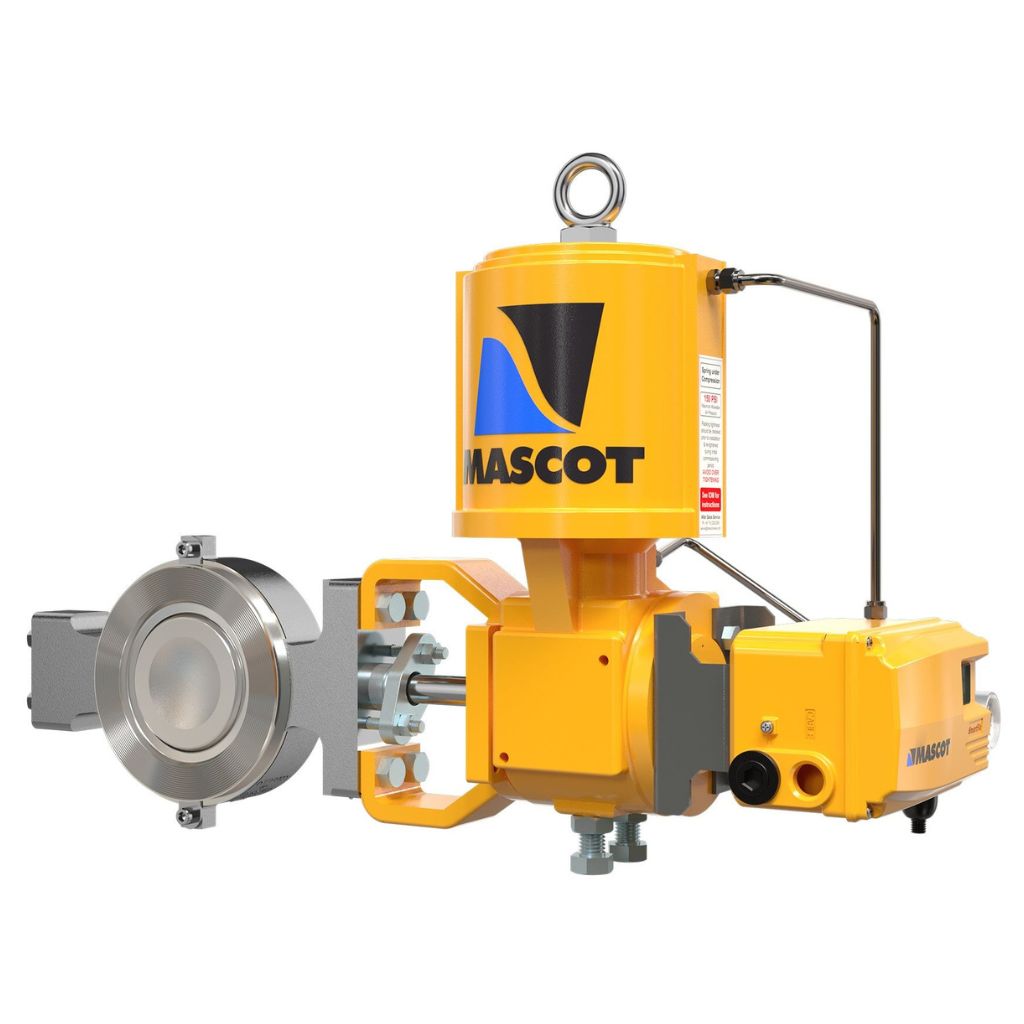

Advanced Butterfly Control Valve Solutions
Engineered for precise flow control and long service life, our butterfly control valves feature a double eccentric cammed disc design that minimizes seat wear and operating torque. The one-piece straight-through body ensures a low pressure drop, while the splined shaft eliminates dead band and transmission loss. Available with wafer, lugged, and flanged end connections, these valves offer equal percentage, linear, and quick-open flow characteristics. With clamped, self-aligned seats delivering up to ANSI Class VI shut-off, they integrate seamlessly with pneumatic spring-cylinder rotary actuators for intelligent and reliable process automation.
Key Features
- ✔️ Accurate Flow Control - Provides equal percentage, linear, and quick-open flow characteristics for precise process regulation
- ✔️ Compact High-Performance Design - One-piece straight-through body minimizes pressure drop and maximizes flow efficiency
- ✔️ Double Eccentric Disc Design - Reduces seat wear, operating torque, and extends valve service life
- ✔️ Reliable Sealing Performance - Self-aligned seat with metal or soft seat options ensures dependable shut-off
- ✔️ Automation Ready - Compatible with pneumatic spring-cylinder rotary actuators for smooth and reliable automated operation
Technical Specifications
| Parameter | Details |
|---|---|
| Body Type | One-Piece Straight Through / Jacketed |
| Body Material | All Castable Materials |
| End Connections | Wafer, Semi-Lugged, Full Lugged & Flanged |
| Bonnet | Standard, Extended & Cryogenic |
| Gland Packing | PTFE, Braided PTFE, Grafoil, Vacuum Service |
| Gaskets | PTFE, Spiral Wound Grafoil, Glass Filled Stainless Steel |
| Seat Ring | Clamped, Self-Aligned |
| Disc Design | Double Eccentric Cammed |
| Shaft Material | Splined Shaft - No Transmission Loss or Dead Band, Stainless Steel / 17-4 PH |
| Flow Characteristics | Equal Percentage, Linear & Quick-Open (On-Off) |
| Actuator | Pneumatic Spring Cylinder Rotary Actuator, Fully Field Reversible |
| Air Supply Pressure | 2.0 to 10.0 Bar |
| Shut-Off Class | ANSI Class IV (Metal Seat), ANSI Class VI (Replaceable Soft Seat) |
