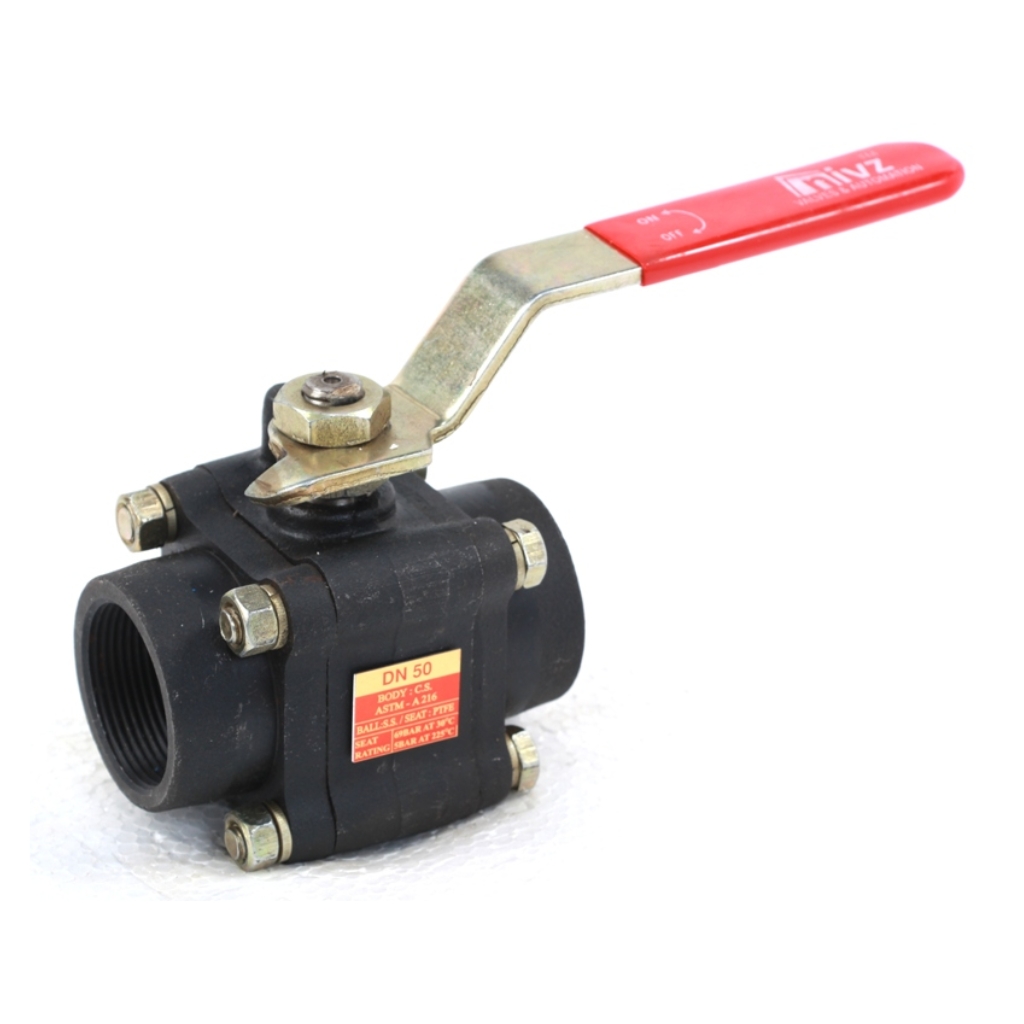

Forged Steel Ball Valve
Forged Steel Ball Valve
Chemoil Advance Technology supplies Forged Steel Ball Valves from recognized manufacturers for reliable flow isolation and process control in demanding industrial applications. Manufactured using a forged construction, these valves are designed to provide mechanical strength, durability and dependable performance in high-pressure service.
Forged Steel Ball Valves use a rotating ball with a precision-machined flow passage to provide efficient on/off isolation. The robust forged body construction makes them suitable for applications where pressure containment, structural integrity and reliable operation are important.
Key Features
- ✔️ High Strength Forged Steel Construction
- ✔️ Designed for High Pressure & High Temperature Service
- ✔️ Bubble-Tight Shut-Off Performance
- ✔️ Full Port & Reduced Port Options
- ✔️ Fire Safe & Anti-Static Design Available
- ✔️ Blow-Out Proof Stem
- ✔️ Low Operating Torque
- ✔️ Manual, Pneumatic & Electric Actuation Available
- ✔️ Corrosion Resistant Materials
- ✔️ Designed to International Standards
Technical Specifications
| Parameter | Details |
|---|---|
| Valve Type | Forged Steel Ball Valve |
| Size Range | 1/4`` NB to 4`` NB |
| Pressure Rating | ANSI Class 800 to 4500 |
| End Connections | Screwed End, Socket Weld End, Butt Weld End & Flanged End |
| Body Materials | Forged Carbon Steel, Forged Stainless Steel, Alloy Steel, Duplex Stainless Steel & Special Alloys |
| Ball Materials | SS304, SS316, Duplex Stainless Steel & Special Alloy Materials |
| Seat Materials | PTFE, RPTFE, PEEK, Devlon & Metal Seat (Optional) |
| Operation | Lever Operated, Gear Operated, Pneumatic & Electric Actuated |
| Operating Temperature | -46°C to +250°C (Depending on Seat Material) |
| Design Standards | API 608, API 6D, ASME B16.34, ISO 17292, API 607 Fire Safe & ISO 5211 |
