Double Offset Design Butterfly Valve(Wafer | Lug)
The Double Offset Design Butterfly Valve (Wafer | Lug) is engineered for high-performance flow control in demanding industrial applications requiring reliable shut-off, extended service life, and reduced seat wear. Its double offset disc design minimizes friction between the disc and seat during operation, ensuring smooth performance, low operating torque, and enhanced sealing efficiency.

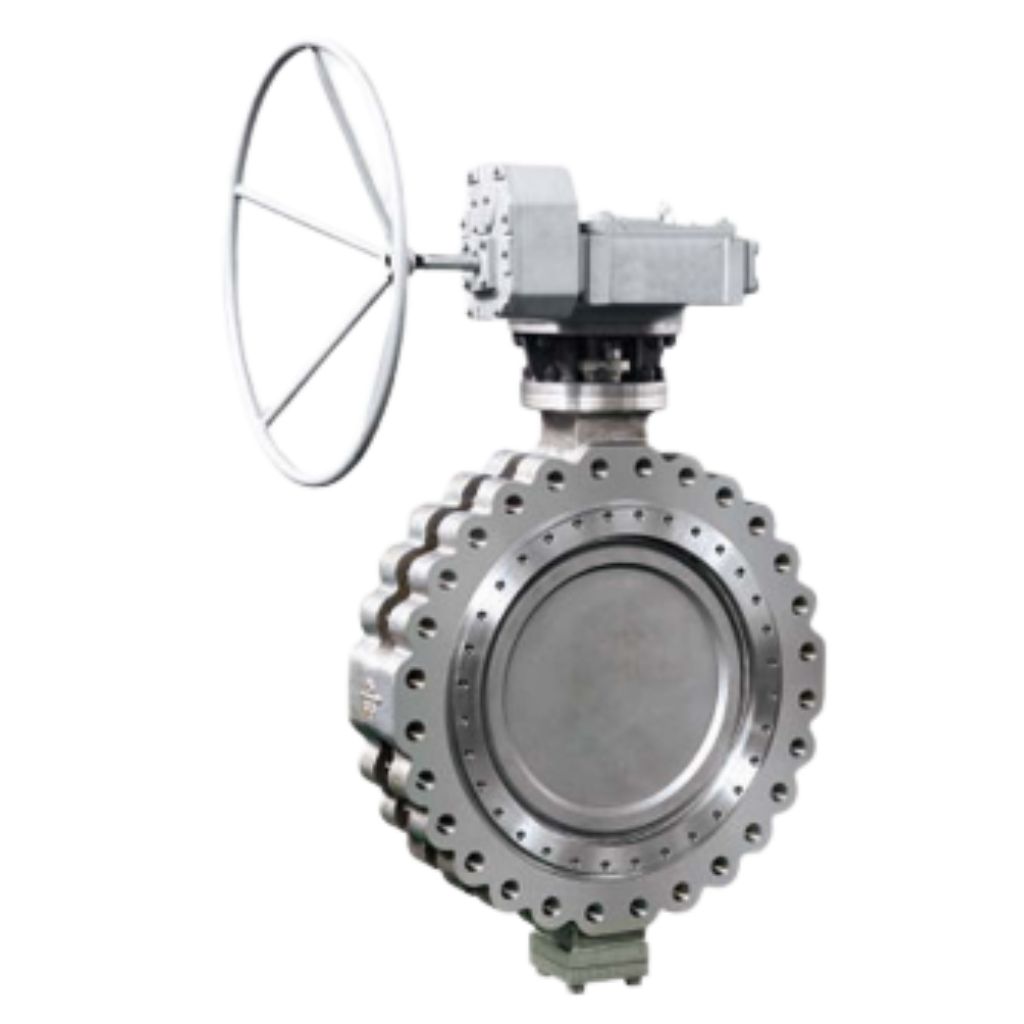

Double Offset Design Butterfly Valve(Wafer | Lug)
Designed for high-pressure and high-temperature service, the Double Offset Butterfly Valve is manufactured from premium-grade materials to provide exceptional durability and corrosion resistance. It is widely used in oil & gas, petrochemical, power generation, chemical processing, water treatment, marine, and other critical industrial applications.
Key Features
- ✔️ Double Offset Disc Design for Reduced Seat Wear
- ✔️ Available in Wafer & Lug Type Construction
- ✔️ Bubble Tight Shut-Off Performance
- ✔️ Low Operating Torque with Quarter-Turn Operation
- ✔️ Fire Safe & Anti-Static Design (Optional)
- ✔️ Blow-Out Proof Stem for Enhanced Safety
- ✔️ Suitable for High Pressure & High Temperature Service
- ✔️ ISO 5211 Mounting Pad for Easy Automation
- ✔️ Available with Manual, Gear, Pneumatic & Electric Actuation
- ✔️ Long Service Life with Minimal Maintenance
Technical Specifications
| Parameter | Details |
|---|---|
| Design | API 609 Category B |
| Sizes | 2`` to 60`` | DN 50 to DN 1500 |
| Pressure Rating | 150# | 300# | 600# | 900# |
| Connection | Wafer | Lug | Double Flanged |
| Material | WCB, CF8, CF3, CF8M, CF3M, 4A, 5A, 6A, Monel |
| Temperature | -20 °C to +240 °C |
| Operation | Lever | Gear | Pneumatic | Electric |
